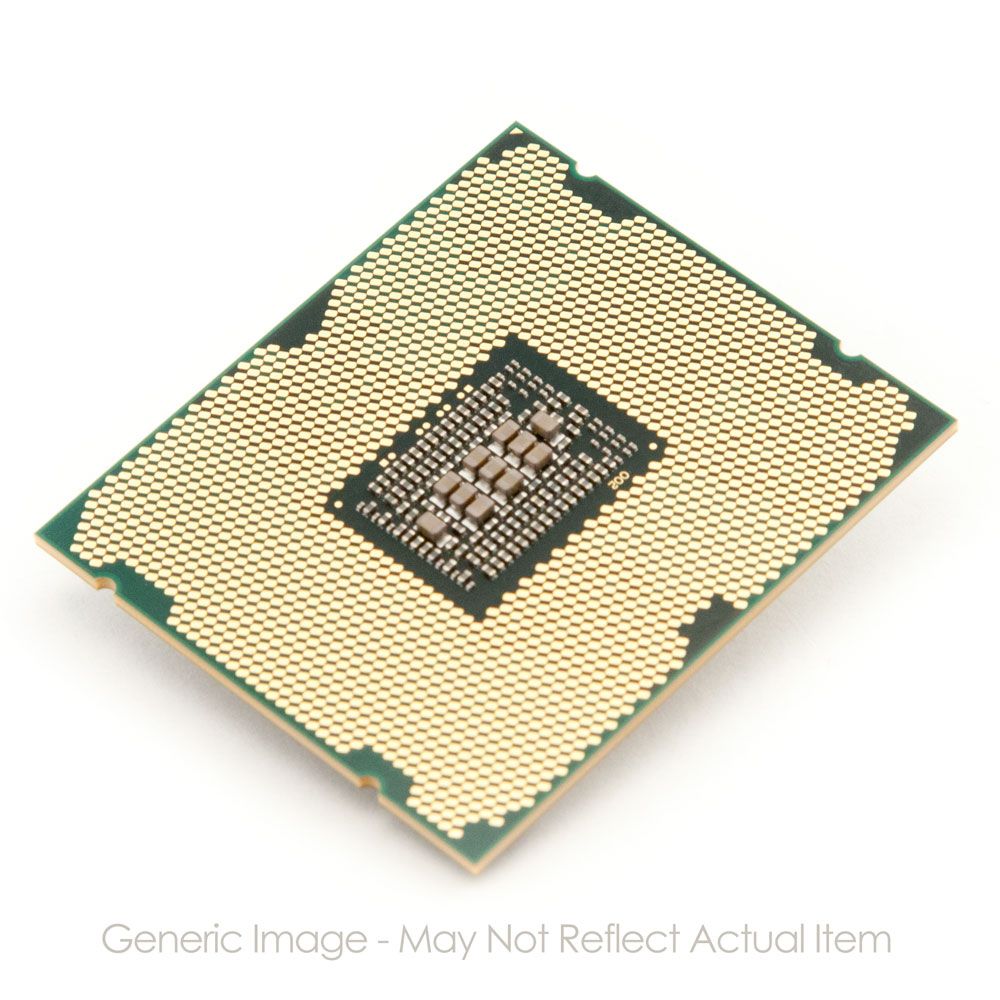

Intel 8 Core E5-1660v3 (3.00GHz, 20M, 5GT/s) SR20N

This Intel Xeon E5-1660 v3 is an 8-core, 16-thread Haswell-generation CPU for single-socket workstation and server platforms using the Xeon E5 v3 family and FCLGA2011 socket. It runs at 3.00GHz base frequency with up to 3.50GHz turbo frequency and includes 20MB cache, a 140W TDP, a 5GT/s bus rating, quad-channel DDR4 ECC memory support up to 2133MHz, and up to 40 PCIe 3.0 lanes from the processor. Use requires motherboard and BIOS support for E5-1600 v3 processors, an FCLGA2011 socket, cooling and airflow rated for a 140W CPU, and memory populated within the board’s DDR4 ECC speed and channel limits.

Manufacturer Part #
SR20N
Product Collection
Intel Xeon Processor E5 v3 Family
Code Name
Haswell
Vertical Segment
Server
Processor Number
E5-1660V3
Lithography
22 nm
Total Cores
8
Total Threads
16
Base Frequency
3.0 GHz
Max Turbo Frequency
3.5 GHz
Cache
20.0 MB
Bus Speed
0.0 GT/s
Max QPI Links
0
TDP
140 W
Max Memory Size
768 GB
Memory Types
DDR4 1333/1600/1866/2133
Max Memory Speed
2133 MHz
Max Memory Channels
4
Max Memory Bandwidth
68.0 GB/s
ECC Memory Supported
true
PCI Express Revision
3
Max PCI Express Lanes
40
Sockets Supported
FCLGA2011
Max CPU Configuration
1
Spec Code
SR20N
Condition
Refurbished
Out Of Stock
$49
