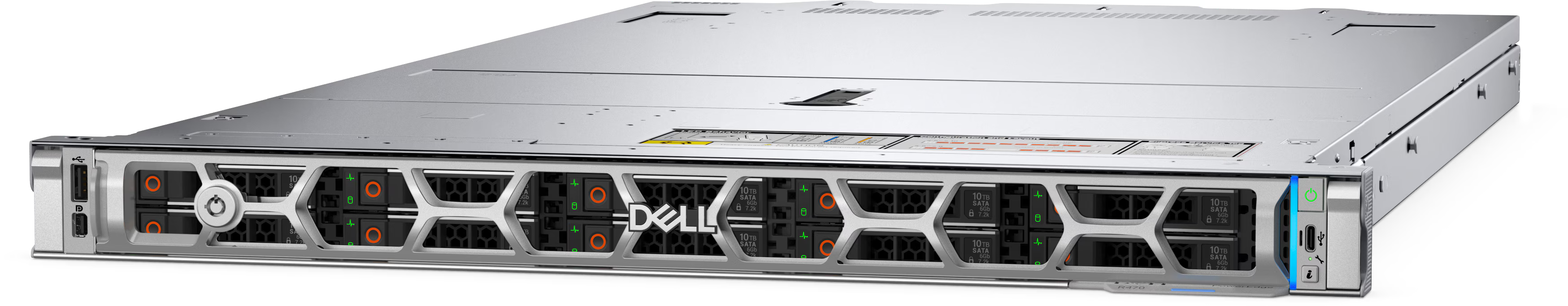

Used and Refurbished Dell PowerEdge R470

17th Gen | 1U Rack Server | 1 Socket
  Contact Us To Get Started

The Dell PowerEdge R470 is a 1U single-socket rack server designed to deliver strong compute density, balanced performance, and optimized power efficiency for modern data center environments. Powered by a single Intel Xeon 6 processor with up to 144 cores, the R470 is built to maximize rack utilization while reducing energy consumption, making it a compelling platform for organizations that need solid performance in a compact footprint. With support for 16 DDR5 DIMM slots, up to 1TB of RDIMM memory at speeds up to 6400 MT/s, and flexible front-bay storage options including EDSFF E3.S Gen5 NVMe or 2.5-inch SAS/SATA/NVMe SSDs, the R470 is well suited for fast, space-efficient deployments. It also supports up to 2 single-width GPUs for added acceleration.

Purpose-built for enterprise and scalable infrastructure, the PowerEdge R470 is ideal for cloud-scale web and application microservices, data services, virtualization, and scale-out database workloads. Dell positions it as a power-conscious, cyber-resilient platform with rear I/O or front I/O configuration options, integrated iDRAC10 management, and security features designed to support operational efficiency, easier serviceability, and long-term reliability.

PowerEdge R470 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 One Intel Xeon 6 processor with up to 144 cores per processor
Memory:
 • 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 6400 MT/s
• Supports registered ECC DDR5 DIMMs only
• Note: The installed processor may reduce the operating speed of the DIMM
Storage Controllers:
 • Internal Controllers (RAID): PERC H965i DC-MHS
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs, or USB
Drive Bays:
 Front Bays:
  • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB
Power Supplies:
• 800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Cooling Options:
Air cooling
Fans:
• Up to 4 sets (dual fan module) hot swappable fans
Dimensions:
• Height – 42.8 mm (1.69 inches)
• Width – 482 mm (19.0 inches)
• Depth – 816.92 mm (32.16 inches) with bezel
• Depth – 815.14 mm (32.09 inches) without bezel
• Depth (Front I/O Configuration) — 829.44 mm (32.09 inches) without bezel
Note: Front I/O configuration will not have a bezel.
Embedded Management:
• iDRAC10
• iDRAC Direct
• iDRAC RESTfull API with Redfish
Bezel:
Optional security bezel
OpenManage Software:
• Dell OpenManage systems management portfolio
Mobility:
Integrated iDRAC management tools
OpenManage Integrations:
Dell OpenManage portfolio tools and automation for scaling, managing, and protecting infrastructure
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC10 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified
Embedded NIC:
N/A
Network Options:
Not listed in the spec sheet
GPU Options:
Up to 2 x 75 W SW
Ports:
Front Ports
  • 1 x USB 2.0 Type-C port
  • 1 x USB 2.0 Type A port (optional)
  • 1 x Mini-DisplayPort (optional)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports
  • 1 x Dedicated BMC Ethernet port
  • 2 x USB 3.1 Type A ports
  • 1 x VGA
Internal Ports
  • 1 x USB 3.1 Type A port
PCIe:
Up to 2 x16 Gen5 PCIe slots
  • Slot 1: 1 x16 Gen5 (x16 connector) full height, half length on rear riser
  • Slot 4: 1 x16 Gen5 (x16 connector) full height, half length on rear riser
Operating Systems & Hypervisors:
• Canonical Ubuntu Server LTS
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server

More information can be found on the official Dell PowerEdge R470 Specs PDF.
