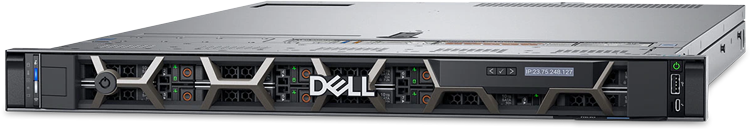

Used and Refurbished Dell PowerEdge R640

14th Gen | 1U Rack Server | 2 Socket
 Start Customizing   Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R640 servers. The Dell PowerEdge R640 is the ideal dual-socket, 1U platform for dense scale-out data center computing. The R640 combines density, performance and scalability to optimize application performance and data center density. The scalable business architecture of the R640 is designed to maximize application performance and provide the flexibility to optimize configurations based on the application and use case. With the R640 you can create an NVMe cache pool and use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be NVDIMM’s, you have the resources to maximize application performance with the optimum configuration in only a 1U chassis.

  • Simplify deployments and speed deployments with Dell EMC ready nodes for ScaleIO and VSAN.
  • Maximize storage performance with up to 10 2.5” NVME / SAS / SATA Drives.
  • Scale compute resources with Intel® Xeon® Scalable delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation Xeon processors.

PowerEdge R640 Technical Specifications

Form Factor:
 1U Rackmount Server
Chassis Depth:
 Max depth: 757.75mm – For the 8 x 2.5” front bay drive configuration. 808.51mm – For the 4 x 3.5” or 10 x2.5” front bay drive configurations (plus up to 2 rear drives).
Processors:
 Up to two Intel Xeon Scalable processors, up to 28 cores per processor
Memory:
 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Storage Controllers:
 Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
12Gbps SAS HBAs (non-RAID): External- 12 Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)
Drive Bays:
 Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 58TB or up to 4 x 3.5” SAS/SATA HDD max 48TB
Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 12TB
Optional DVD-ROM, DVD+RW
Power Supplies:
Titanium 750W, Platinum 495W, 750W, 1100W, and 1600W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy option
Embedded Management:
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Express, Enterprise)
Quick Sync 2 wireless module optional
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Integrations and Connections:
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software
Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management
Rack support:
TPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
I/O & Ports:
Network daughter card options 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card: VGA, NVIDIA NVS310 available as PCIe card Up to 3 x Gen3 slots, all x16
Accelerator Options:
Up to 1 Intel Arria® 10 GX FPGA
Supported Operating Systems:
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi

More information can be found on the official Dell PowerEdge R640 Specs PDF.
