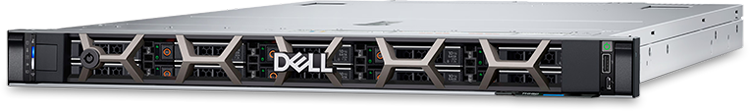

Used and Refurbished Dell PowerEdge R660

16th Gen | 1U Rack Server | 2 Socket
 Start Customizing   Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R660 servers. The Dell PowerEdge R660 is a 1U, two-socket full-featured enterprise rack server, designed to optimize even the most demanding workloads like dense database analytics and high-density virtualization. Add up to two next generation Intel Xeon Scalable processors with up to 56 cores for faster and more accurate processing performance. Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4400 MT/sec (2DPC) or 4800 MT/sec for 1DPC (16 DDR5 RDIMMs max). Support for GPUs including 2x single-wide for workloads requiring acceleration.

The Dell PowerEdge R660 offers powerful performance in a purpose-built, cyber resilient, mainstream server. Ideal for:

  • High Density Virtualization
  • Dense Database Analytics
  • Mixed Workload Standardization

PowerEdge R660 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores and optional Intel QuickAssist Technology.
Memory:
 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
Supports registered ECC DDR5 DIMMs only
Storage Controllers:
 • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
• External HBAs (non-RAID): HBA355e
• Software RAID: S160
Drive Bays:
 Front bays:
 • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
 • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Rear Bays:
 • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Power Supplies:
• 1800W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant
• 1400W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant
• 1100W Titanium 100—240 VAC or 240 HVDC, hot swap with full redundant
• 1100W LVDC -48 — -60 VDC, hot swap with full redundancy
• 800W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant
• 700 W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant
Cooling Options:
• Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans:
• Standard (STD) fans/High performance Gold (VHP) fans
• Up to 4 sets (dual fan module) hot plug fans
Dimensions:
• Height – 42.8 mm (1.68 inches)
• Width – 482 mm (18.97 inches)
• Depth – 822.88 mm (32.39 inches) with bezel
   809.04 mm (31.85 inches) without bezel
Embedded Management:
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
Mobility:
OpenManage Mobile
OpenManage Integrations:
• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
2 x 1 GbE LOM card (optional)
Network Options:
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options:
Up to 2* x 75 W SW
Ports:
Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA
Rear Ports:
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports:
 - 1 x USB 3.0 (optional)
PCIe:
Up to three PCIe slots :
• Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
• Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
• Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
Operating Systems & Hypervisors:
 Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

More information can be found on the official Dell PowerEdge R660 Specs PDF.
