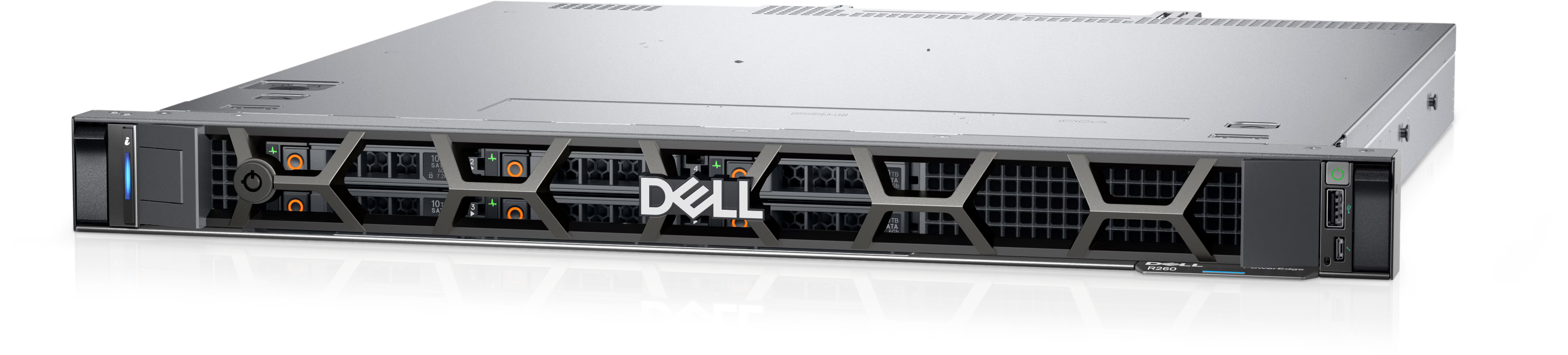

Used and Refurbished Dell PowerEdge R260

16th Gen | 1U Rack Server | 1 Socket
  Contact Us To Get Started

The Dell PowerEdge R260 is a short-depth 1U single-processor rack server designed for small business and near-edge deployments that need enterprise-class reliability in a compact footprint. Powered by an Intel Xeon 6300 series, Intel Xeon E-2400 series, or Intel Pentium G7400/G7400T processor, the R260 delivers affordable compute for everyday business workloads while supporting up to 128GB of DDR5 UDIMM memory at speeds up to 4400 MT/s. With flexible storage options, NVMe BOSS boot support, and a compact 17-inch chassis, the R260 is built to fit environments like warehouses, retail offices, shelves, or shallow racks where traditional servers may not be practical.

Purpose-built for mailing and messaging, collaboration and sharing, and near-edge applications, the PowerEdge R260 is positioned by Dell as an affordable entry rack server with enterprise-level features and secure infrastructure. Its optional filter bezel helps protect internal components from dust and grease, while iDRAC9 management, OpenManage integration, and built-in security features support dependable day-to-day operation and simplified lifecycle management.

PowerEdge R260 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 • One Intel Xeon 6300 series or one Intel Xeon E-2400 series processor with up to 8 cores
• One Intel Pentium G7400/G7400T processor with 2 cores
Memory:
 • 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only
Storage Controllers:
 • Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
• Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e Adpt
• Software Controller: S160
Drive Bays:
 Front Bays:
  • Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB
  • Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08 TB
Power Supplies:
• 450 W Platinum 100 — 240 VAC, non redundant
• 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant
Cooling Options:
Air cooling
Fans:
• Up to six cabled fans
Dimensions:
• Height – 42.8 mm (1.68 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 461.14 mm (18.15 inches) without bezel
• Depth – 496.8 mm (19.55 inches) with bezel
• Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel
Embedded Management:
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual
Bezel:
Security bezel or optional filter bezel
OpenManage Software:
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
Mobility:
OpenManage Mobile
OpenManage Integrations:
• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
2 x 1 GbE LOM
Network Options:
Not listed in the spec sheet
GPU Options:
N/A
Ports:
Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x Serial
Internal Ports
  • 1 x USB 3.2 Gen1
PCIe:
Up to two PCIe Gen4 slots on the Gen4 Riser
  • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
  • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
Operating Systems & Hypervisors:
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

More information can be found on the official Dell PowerEdge R260 Specs PDF.
