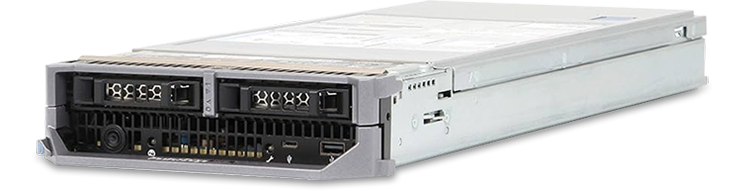

Used and Refurbished Dell PowerEdge M630

13th Gen | Modular / Blade Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge M630 servers. Deliver the compute power your demanding applications require with the PowerEdge M630 blade server. Designed for use with the PowerEdge M1000e blade enclosure and PowerEdge VRTX converged infrastructure, the M630 offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices. The Intel® Xeon® processor E5-2600 v4 product family offers the processing cycles and threads to help increase virtualization performance, allowing the M630 to deliver more, larger and higherperforming virtual machines with help from more cores and up to 15 percent greater memory bandwidth.

  • Up to 44 cores with the latest Intel Xeon processor E5-2600 v4 product family
  • 24 DIMMs of DDR4 memory
  • Up to four 1.8" SSDs with double the storage bandwidth

PowerEdge M630 Technical Specifications

Form Factor:
 Half-height blade with up to 16 nodes in a 10U M1000e chassis; up to four nodes in a VRTX chassis
Dimensions:
 H: 197.9 mm (7.79 in), W: 50.35 mm (1.98 in), D: 564.9 mm (22.2 in)
Processors:
 Intel® Xeon® processor E5-2600 v4 product family
Chipset: Intel C610 series chipset
Processor sockets: 2
Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22
Memory:
 Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O Mezzanine Cards:
 2 x PCIe 3.0 (x8) mezzanine cards
RAID Controllers:
 Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Primary Storage:
 Hot-plug hard drive options: PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 4 x 1.8" SSD. 2 x 2.5" PCIe SSDs
Optional Adapters:
Broadcom 5719 Quad port 1GBE Mezz Card for M-Series Blades
Broadcom 5720 1GB Quad Port KR Blade Network Daughter Card
Emulex LPE1205-M 8GBps Dual Port Fibre Channel I/O Mezz Card for M-Series Blades
Emulex LPM16002 16GBps Dual Port Fibre Channel I/O Mezz Card
Emulex OCm14102-U5-D, Dual Port 10GBE, KR Mezzanine, Converged Network Adapter for M-Series Blades
Emulex OCm14104-U3-D, Dual Port 10GBE, KR Mezz Converged Network Adapter for M-Series Blades
Emulex OneConnect OCm14102B-N5-D 2-port 10GBE Mezz NIC
Emulex OneConnect OCm14102B-N6-D 2-port 10GBE bNDC NIC
Emulex OneConnect OCm14102B-U4-D 2-port 10GBE bNDC CNA
Emulex OneConnect OCm14102B-U5-D 2-port 10GBE Mezz CNA
Emulex OneConnect OCm14102-N5-D 2-port 10GBE Mezzanine NIC
Emulex OneConnect OCm14102-N6-D 2-port 10GBE KR NIC, Blade Network Daughter Card
Emulex OneConnect OCm14102-U4-D, Dual Port 10GBE, KR CNA Network Daughter Card
Intel i350 Quad Port 1 Gigabit, KR Blade Network Daughter Card
Intel i350 Quad Port 1GB Serdes Mezz Card for M-Series Blades
Intel x520-k Dual Port 10GB KR Blade Network Daughter Card
Intel X710 Dual Port, 10GB KR Blade Network Daughter Card
Intel X710 Quad Port, 10GB KR Blade Network Daughter Card
Intel® X520-x/k 10GB Dual Port I/O Mezz Card for M-Series Blades
Mellanox Connect X3 FDR IB / 56GB Mezz Card for M-Series Blades
Mellanox Connect X3 FDR10 IB Mezz Card for M-Series Blades
Mellanox ConnectX-3 Dual Port 10GB KR Mezz Card for M-Series Blades
Mellanox ConnectX-3 Pro Dual Port 10 GBE KR Mezzanine Card
QLogic 57810-k Dual port 10GB KR CNA Blade Network Daughter Card
QLogic 57810-k Dual port 10GB KR CNA Mezz Card for M-Series Blades
QLogic 57840S 10GB Quad Port KR CNA Blade Network Daughter Card
Qlogic QME2572 8GBps Fibre Channel I/O Mezz Card for M-Series Blades
QLogic QME2662 16Gbps Fibre Channel I/O Mezz Card
Power Supplies:
 Chassis level – PowerEdge M1000e 2700W Platinum and 3000W Titanium PSU options
Video Card:
 Video type Matrox® G200 (integrated with iDRAC8) Video memory: 16MB shared with iDRAC8 application memory
Systems Management:
Systems management:
IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Supported Operating Systems:
Microsoft® Windows Server® 2016
Microsoft Windows Server 2012 R2
SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESXiTM

More information can be found on the official Dell PowerEdge M630 Specs PDF.
