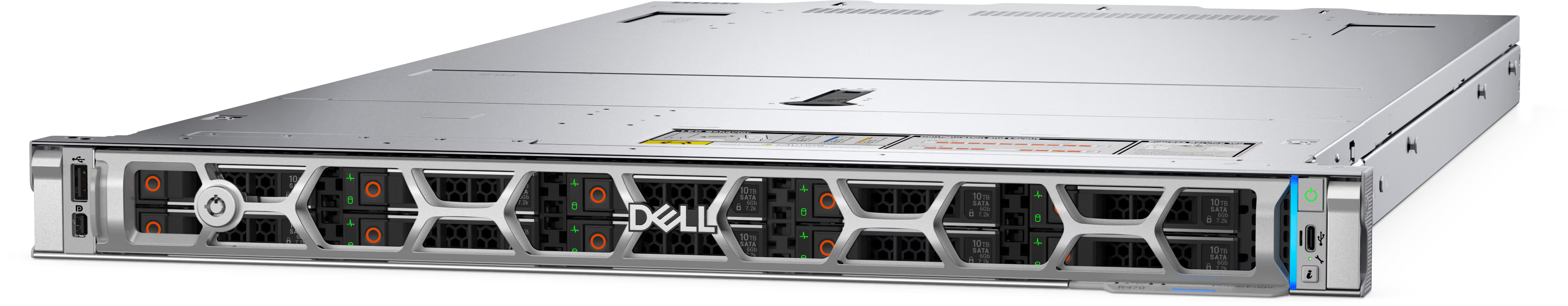

Used and Refurbished Dell PowerEdge R670

17th Gen | 1U Rack Server | 2 Socket
  Contact Us To Get Started

The Dell PowerEdge R670 is a 1U dual-socket rack server built to deliver strong compute density, balanced performance, and improved power efficiency for modern data centers. Powered by up to two Intel Xeon 6 processors with as many as 144 E-cores or 86 P-cores per processor, the R670 is designed to handle demanding enterprise workloads while maximizing rack efficiency. With support for up to 32 DDR5 RDIMMs and as much as 8TB of memory at speeds up to 6400 MT/s, the system is well suited for environments that need a compact server without giving up memory capacity or next-generation performance. The R670 also offers flexible storage options, including high-density EDSFF E3.S Gen5 NVMe configurations, plus support for GPU and DPU acceleration to further expand its capabilities.

Purpose-built for enterprise and scalable infrastructure, the PowerEdge R670 is ideal for virtualization, cloud-native applications, all-flash SDS, hyperscale workloads, and scale-out databases. Dell positions it as a power-optimized platform with advanced cooling, front I/O or rear I/O configuration choices, integrated cyber-resilient security, and OpenManage systems management tools that help simplify deployment, automation, and lifecycle management.

PowerEdge R670 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 Up to two Intel Xeon 6 processors with up to 144 E-cores or 86 P-cores per processor
Memory:
 • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage Controllers:
 • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
• Internal Controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
Drive Bays:
 Front Bays:
  • No backplane configuration
  • Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration
  • Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
  • Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB
  • Up to 8 x 2.5-inch SATA/NVMe Direct/NVMe RAID max 491.52 TB
  • 8 x 2.5-inch Universal max 491.52 TB
  • Up to 10 x 2.5-inch SATA max 38.4 TB
Rear Bays:
  • Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB
Power Supplies:
• 1500 W Titanium 100—240 VAC or 240 VDC
• 1100 W Titanium 100—240 VAC or 240 VDC
• 800 W Titanium 100—240 VAC or 240 VDC
• 1100 W Platinum 100—240 VAC or 240 VDC
• 800 W Platinum 100—240 VAC or 240 VDC
• 1800 W HLAC Titanium 200—240 VAC or 240 VDC*
• 1500 W 277 VAC or 336 VDC*
• 1400 W LVDC -48 — -60 VDC
Cooling Options:
• Air cooling
• Direct Liquid Cooling
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans:
• High performance Silver (HPR SLVR) or Standard (STD) fans
• Up to 4 sets (dual fan module) hot swappable fans
Dimensions:
• Height – 42.8 mm (1.69 inches)
• Width – 482 mm (18.98 inches)
• Weight – 20.42 kg (45.02 pounds)
Depth (for rear I/O configuration)
  • 816.92 mm (32.20 inches) with bezel
  • 815.14 mm (32.09 inches) without bezel
Depth (for front I/O configuration)
  • 829.44 mm (32.66 inches) without bezel
Note: The front I/O configuration does not support the bezel.
Embedded Management:
• iDRAC
• iDRAC Direct
• iDRAC RESTful API with Redfish
• RACADM CLI
• iDRAC Service Module (iSM)
• Quick Sync 2 wireless module
• NativeEdge Endpoint*
• NativeEdge Orchestrator*
Bezel:
Optional security bezel
OpenManage Software:
• Dell OpenManage systems management portfolio
Mobility:
Quick Sync 2 wireless module
OpenManage Integrations:
Dell OpenManage portfolio tools and automation for scaling, managing, and protecting infrastructure
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection
Embedded NIC:
Dedicated iDRAC management ethernet port
Network Options:
• 2 x OCP NIC 3.0 cards (optional)
• 1GbE, 10GbE, 25GbE, 100GbE and 400GbE*
• Slot 31: 1 x16 OCP 3.0 on front riser
• Slot 32: 1 x16 OCP 3.0 on front riser
• Slot 2: 1 x16 OCP 3.0
• Slot 5: 1 x8 Gen5 OCP 3.0 or 1 x16 Gen5 OCP 3.0
BOSS:
 • Slot 34: Front BOSS slot
• Slot 3: Rear BOSS slot
GPU Options:
Up to 3 x 75 W SW
DPU Options:
• NVIDIA BlueField-3 2x200 GbE B3220
• NVIDIA BlueField-3 1x400 GbE B3140H
Ports:
Front Ports
  • 1 x USB 2.0 Type C port
  • 1 x USB 2.0 Type A port (optional)
  • 1 x Mini-DisplayPort (optional)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated ethernet port for iDRAC management
Rear Ports
  • 1 x Dedicated ethernet port for iDRAC management
  • 1 x VGA
  • 2 x USB 3.1 Type A ports
Internal Ports
  • 1 x USB 3.1 Type A port
PCIe:
Up to 2 x16 Gen5 PCIe slots:
  • Slot 31: 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
  • Slot 32: 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
Up to 3 x16 or 2 x8 Gen5 PCIe slots:
  • Slot 1: 1 x16 Full Height - Half Length or Full Height - Full Length or 3 x16 or 1 x8 Low Profile - Half Length
  • Slot 2: 1 x16 or 1 x8 Low Profile - Half Length or 1 x16 OCP 3.0
  • Slot 4: 1 x16 Full Height - Half Length or 1 x16 Low Profile - Half Length
Operating Systems & Hypervisors:
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V (P-Core only)
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• Dell NativeEdge OS*

More information can be found on the official Dell PowerEdge R670 Specs PDF.
