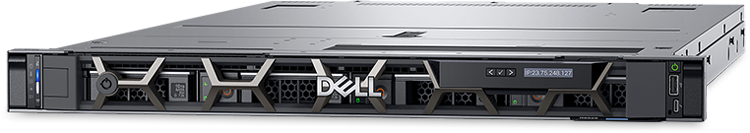

Used and Refurbished Dell PowerEdge R6525

15th Gen | 1U Rack Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R6525 servers. The PowerEdge R6525 is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovation for dense compute environments. The R6525 is built to be an HPC powerhouse with 2x AMD EPYC™ CPUs, 2TB of 3200 MT/s memory, and the option for liquid cooling. The R6525 has Ready Solutions for digital manufacturing, life sciences, and research. Also, the R6525 is the engine behind Dell's Minerva cluster and other super computing platforms. It’s ideal for traditional and emerging workloads and applications. High-level features include:

  • 64 processing cores and faster data transfer speeds with PCIe Gen 4
  • Up to 3200MT/s memory speed to reduce latency and deliver faster response
  • Multi GPU support to accelerate end user VDI performance
  • Highest core count PE 1U server with cryptographic isolation between hypervisor and VMs

PowerEdge R6525 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
Memory:
 Up to 32 x DDR4
Maximum RAM
RDIMM 2 TB
LRDIMM 4TB
Max Bandwidth up to 3200 MT/S
Storage Controllers:
 PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA
PERC 11 – H755, H755N
Chipset SATA/SW RAID (S150): Yes
Drive Bays:
 Front bays:
 - Up to 4 x 3.5” hot plug SAS/SATA (HDD)
 - Up to 8 x 2.5” hot plug SAS/SATA (HDD)
 - Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe
Optional Internal: 2 x M.2 (BOSS)
Optional Rear: 2 x M.2 (BOSS-S2)
Power Supplies:
800W Platinum
1400W Platinum
1100W Titanium
Fans:
Hot plug fans
Dimensions:
Height: 42.8mm (1.7”)
Width: 434.0mm (17.1”)
Depth: 736.54mm (29”)
Weight: 21.8kg (48.06lbs)
Embedded Management:
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Enterprise Power Manager
OpenManage Mobile
Integrations and Connections:
OpenManage Integrations:
 - BMC Truesight
 - Microsoft System Center
 - Red Hat Ansible Modules
 - VMware vCenter and vRealize Operations Manager
OpenManage Connections:
 - IBM Tivoli Netcool/OMNIbus
 - IBM Tivoli Network Manager IP Edition
 - Micro Focus Operations Manager I
 - Nagios Core
 - Nagios XI
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC:
2 x 1 GbE LOM
Network Options:
OCP x16 Mezz 3.0 + 2 x 1GE LOM
GPU Options:
Up to 2 Single-Wide GPU
Ports:
Front Ports:
 - 1 x Dedicated iDRAC direct micro-USB
 - 1 x USB 2.0 1 x VGA
Rear Ports:
 - 1 x Dedicated iDRAC network port
 - 1 x Serial (optional)
 - 1 x USB 3.0
 - 1 x VGA
PCIe:
3 x Gen4 slots (x16) at 16GT/s
Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

More information can be found on the official Dell PowerEdge R6525 Specs PDF.
