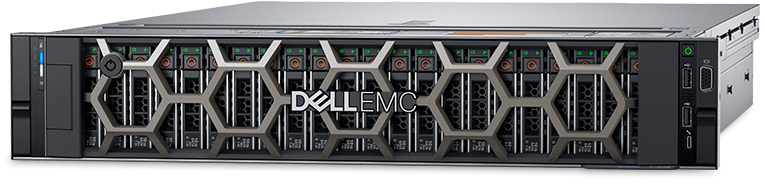

Used and Refurbished Dell PowerEdge R840

14th Gen | 2U Rack Server | 4 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R840 servers. Designed to drive faster insights, the PowerEdge R840 delivers four-socket performance in a dense 2U design. Power your business-critical workloads with up to 24 direct-attached NVMe drives. The R840 delivers consistent, high performance results for data-intensive applications and data analytic workloads. With powerful 2nd Generation Intel® Xeon® Scalable processors and up to 112 cores, the R840 can quickly turn analytics into insights to drive your business forward faster. Create an optimal configuration of NVMe, SSD, HDD and GPU resources to address your most demanding workloads - all in a 2U chassis.

  • Choose an all-flash configuration with up to 24 direct-attached NVMe drives
  • Add up to 24 PMems of memory

PowerEdge R840 Technical Specifications

Form Factor:
 2U Rack Mount Server
Processors:
 Up to four 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor
Memory:
 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max
Up to 12 NVDIMM, 384GB Max
Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM)
Supports registered ECC DDR4 DIMMs only
Storage Controllers:
 Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
Drive Bays:
 Front drive bays: Up to 8 x 2.5” SAS SATA (HDDs/SSDs) max 61.44TB, or up to 24 x 2.5” SAS/SATA (HDDs/SSDs) with up to 12 NVMe PCIe SSDs max 184.32TB, or up to 24 NVMe PCIe SSDs max 153TB
Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDDs/SSDs), max 15.36TB
Power Supplies:

Gold:1100W - 48VDC,
Platinum: 750W, 750W 240VDC2, 1100W, 1100W 240VDC1 1600W, 2000W, 2400W
Titanium: 750W
Hot plug power supplies with full redundancy option 6 hot plugs fans with N +1 redundancy
Dimensions:
Height: 86.8mm (3.4”)
Width*: 434.0mm (17.08”)
Depth*: 835.9mm (32.9”)
Weight: 36.6kg (80.7lbs.)
*Dimensions do not include bezel, brackets or PSU handles
Embedded Management:
iDRAC9
iDRAC Direct
Quick Sync 2 BLE/wireless
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Mobile
OpenManage Power Center
Integrations and Connections:
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Software Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management
Tools:
Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module
iDRAC RESTful API with Redfish
OpenManage Server Administrator
OpenManage Storage Services
Security:
TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown (requires iDRAC Enterprise and Datacenter)
Silicon Root of Trust
Secure Erase
I/O & Ports:
Network Daughter Card Options
4 x 1GbE, 4 x 10GbE, 2 x 10GbE+2 x 1GbE, or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct Micro USB, 1 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA
Internal port: 1 x USB 3.0
Video card: 2 x VGA
PCIe: Up to 6 x Gen3 slots, (4x16 slots or 2x16 + 4x8 slots)
Accelerator Options:
Up to 2 doublewidth GPUs or up to 2 full-height FPGAs
Supported Operating Systems:
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi

More information can be found on the official Dell PowerEdge R840 Specs PDF.
