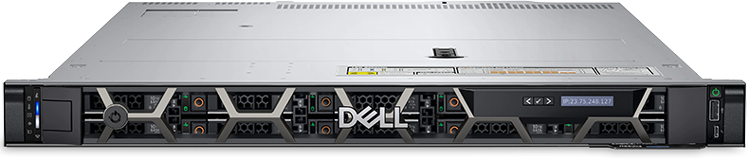

Used and Refurbished Dell PowerEdge R650xs

15th Gen | 1U Rack Server | 2 Socket
 Start Customizing   Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R650xs servers. The Dell EMC PowerEdge R650xs, with 3rd generation Intel® Xeon® Scalable processors, is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities. It is a dual-socket server that’s purpose-built to maximize value with distinctive feature sets for scale-out environments. Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per socket. Accelerate in-memory workloads with up to 16 DDR4 RDIMMS, 3200 MT/sec. Improve throughput and reduce latency with up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support. Enjoy flexible storage options of up to 4x 3.5” SAS/SATA HDDs or SSDs; or up to 10x 2.5” SAS/SATA HDDs or SSDs, and 10 NVMe drives. Enable virtualization, medium density VM or VDI, and High-Performance Compute node workloads.

The Dell EMC PowerEdge R650xs offers compelling performance, high-speed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:

  • Virtualization/Clouditional corporate IT
  • Scale-out Database
  • High-Performance Compute

PowerEdge R650xs Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory:
 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
Supports registered ECC DDR4 DIMMs only
Storage Controllers:
 Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB
External PERC (RAID): PERC H840, HBA355e
Drive Bays:
 Front bays:
  • 0 drive bay
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power Supplies:
• 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
• 1800W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
Cooling Options:
Air cooling
Fans:
• Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
• Up to seven cabled fans
Dimensions:
• Height – 42.8 mm (1.68 inches)
• Width – 482 mm (18.97 inches)
• Depth – 734.95 mm (28.92 inches) – without bezel
        748.79 mm (29.47 inches) – with bezel
Embedded Management:
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility:
OpenManage Mobile
Integrations and Connections:
OpenManage Integrations:
 - BMC Truesight
 - Microsoft System Center
 - Red Hat Ansible Modules
 - VMware vCenter and vRealize Operations Manager
OpenManage Connections:
 - IBM Tivoli Netcool/OMNIbus
 - IBM Tivoli Network Manager IP Edition
 - Micro Focus Operations Manager
 - Nagios Core
 - Nagios XI
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
2 x 1 GbE LOM
Network Options:
1 x OCP 3.0
GPU Options:
Not Supported
Ports:
Front Ports:
 - 1 x Dedicated iDRAC Direct micro-USB
 - 1 x USB 2.0
 - 1 x VGA
Rear Ports:
 - 1 x USB 2.0
 - 1 x Serial (optional)
 - 1 x USB 3.0
 - 2 x Ethernet
 - 1 x VGA
Internal Ports:
 - 1 x USB 3.0
PCIe:
Up to 3 x PCIe Gen4 slots
Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

More information can be found on the official Dell PowerEdge R650xs Specs PDF.
