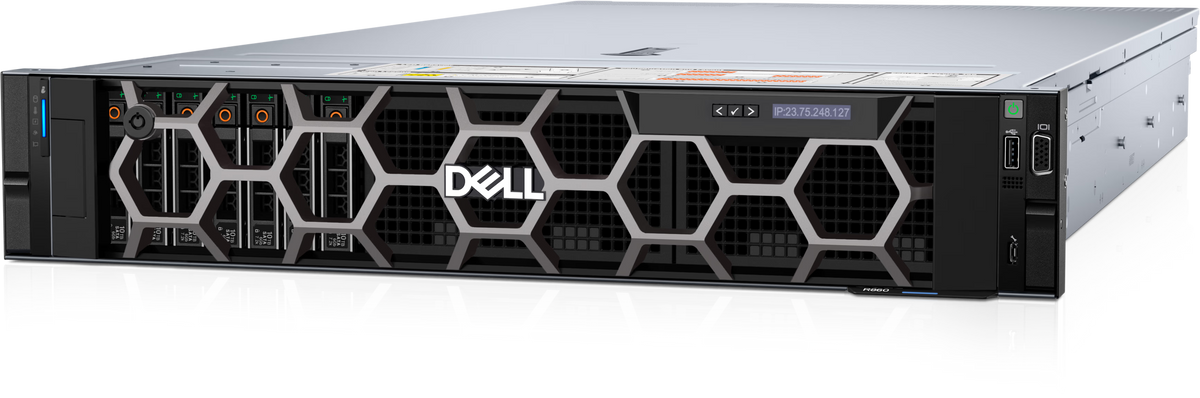

Used and Refurbished Dell PowerEdge R860

16th Gen | 2U Rack Server | 4 Socket

The Dell PowerEdge R860 is a high-density 2U four-socket rack server designed for business-critical workloads that require substantial compute power, memory capacity, and I/O expansion. Supporting up to four 4th Generation Intel Xeon Scalable processors with as many as 60 cores per processor, the R860 can deliver up to 240 processor cores in a compact 2U platform. It also supports 64 DDR5 DIMM slots with up to 16TB of registered ECC memory at speeds up to 4800 MT/s, making it particularly well suited for large in-memory databases and other memory-intensive enterprise applications. Storage options include up to 24 front 2.5-inch SAS, SATA, or NVMe drives, while eight PCIe slots provide extensive Gen5 expansion capability.

Purpose-built for core and business-critical applications, the PowerEdge R860 is ideal for large in-memory databases such as SAP HANA, SQL, and Oracle, as well as data analytics, AI, virtualization, and VDI workloads. Dell positions the R860 as a scale-up platform that combines dense four-socket compute with DDR5 memory, PCIe Gen5, NVMe storage, flexible OCP networking, and optional direct liquid cooling. Integrated iDRAC9 and OpenManage management, along with Dell's cyber-resilient security architecture, provide enterprise-class lifecycle management and security for demanding data center environments.

PowerEdge R860 Technical Specifications

Form Factor:
2U Rack Server
Processors:
Up to four 4th Generation Intel Xeon Scalable processors with up to 60 cores per processor and with optional Intel® QuickAssist Technology
Memory:
• 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage Controllers:
• Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i, HBA465i
• External Controller: PERC H965e
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e, HBA465e
• Software RAID: S160
Drive Bays:
Front Bays:
  • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB
  • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) drives max 61.44 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB
  • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB
Rear Bays:
  • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) drives max 30.72 TB
  • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB
Power Supplies:
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options:
• Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans:
• Standard (STD) fans
• Up to 6 sets hot plug fans
Dimensions:
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 883.2 mm (34.77 inches) with bezel
  869.2 mm (34.22 inches) without bezel
Embedded Management:
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
Mobility:
OpenManage Mobile
OpenManage Integrations:
• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
2 x 1 GbE LOM card (optional)
Network Options:
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options:
N/A
Ports:
Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA
Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 3.0
  • 1 x USB 2.0
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
  • 1 x USB 3.0 (optional)
PCIe:
Up to eight PCIe slots:
  • Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 3: 1 x16 Gen5 Low profile, Half length
  • Slot 4: 1 x16 Gen5 Full height, Half length
  • Slot 5: 1 x16 Gen5 Full height, Half length
  • Slot 6: 1 x16 Gen5 Low profile, Half length
  • Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Operating Systems & Hypervisors:
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
