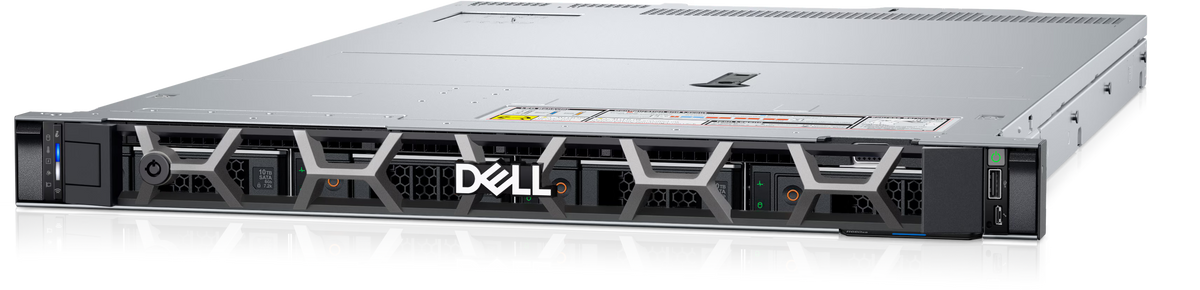

Used and Refurbished Dell PowerEdge R660xs

16th Gen | 1U Rack Server | 2 Socket
  Contact Us To Get Started

The Dell PowerEdge R660xs is a compact 1U dual-socket rack server designed to provide a strong balance of compute density, performance, and cost for widely deployed enterprise workloads. Supporting up to two 5th Generation Intel Xeon Scalable processors with up to 28 cores each, or two 4th Generation Intel Xeon Scalable processors with up to 32 cores each, the R660xs delivers substantial processing capability without the added complexity of a more expansion-focused platform. It supports 16 DDR5 RDIMM slots with up to 1.5TB of memory and speeds up to 5200 MT/s, along with flexible storage configurations ranging from four 3.5-inch drives to ten front 2.5-inch SAS, SATA, or NVMe drives.

Purpose-built for virtualization and cloud, scale-out databases, and high-performance computing, the PowerEdge R660xs emphasizes dense compute that fits into existing air-cooled data center infrastructure. PCIe Gen5 support, optional OCP 3.0 networking, BOSS-N1 boot storage, and a broad range of PERC and HBA controllers give the R660xs flexibility for common enterprise deployments, while integrated iDRAC9 and Dell OpenManage tools provide enterprise-class management and lifecycle automation.

PowerEdge R660xs Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 • Up to two 5th Generation Intel Xeon Scalable processors with up to 28 cores per processor
• Up to two 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor
Memory:
 • 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage Controllers:
 • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
Drive Bays:
 Front Bays:
  • 0 drive bay configuration
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Rear Bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
Power Supplies:
 • 1800 W Titanium 200—240 VAC or 240 VDC
• 1400 W Titanium 100—240 VAC or 240 VDC
• 1400 W Platinum 100—240 VAC or 240 VDC
• 1400 W Titanium 277 VAC or HVDC (336V DC)
• 1100 W Titanium 100—240 VAC or 240 VDC
• 1100 W -(48V — 60V) DC
• 800 W Platinum 100—240 VAC or 240 VDC
• 700 W Titanium 200—240 VAC or 240 VDC
• 600 W Platinum 100—240 VAC or 240 VDC
Hot swap redundant
Cooling Options:
 Air cooling
Fans:
 • Standard (STD) fans / High performance Gold (VHP) fans
• Up to 7 hot swappable fans
Dimensions:
 • Height – 42.8 mm (1.68 inches)
• Width – 482 mm (18.97 inches)
• Depth – 748.79 mm (29.85 inches) with bezel
  712.95 mm (28.05 inches) without bezel
• Weight – 19.45 kg (55.33 pounds)
Embedded Management:
 • iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
Bezel:
 Optional LCD bezel or security bezel
OpenManage Software:
 • CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
Mobility:
 OpenManage Mobile
OpenManage Integrations:
 • BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security:
 • Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
 2 x 1 GbE LOM card
Network Options:
 1 x OCP card 3.0 (optional)
Ports:
 Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA
Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial (optional)
Internal Ports
  • 1 x USB 3.0 (optional)
PCIe:
 • 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
• 2 CPU Configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
Operating Systems & Hypervisors:
 • Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• Canonical Ubuntu Server LTS
