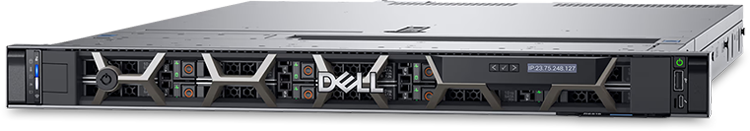

Used and Refurbished Dell PowerEdge R6515

15th Gen | 1U Rack Server | 1 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R6515 servers. The PowerEdge R6515 is a dense single-socket 1U rack server delivering peak performance and excellent TCO. The R6515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands.. High-level features include:

  • 100% more processing cores and faster data transfer speeds with PCIe Gen 4
  • 20% more memory performance for scale out environments
  • Improved TCO with VM density and SQL performance improvements
  • High parallelism for low latency on ROBO and Dense Azure Stack HCI

PowerEdge R6515 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 One 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores
Memory:
 DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage Controllers:
 HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA
Chipset SATA/SW RAID: S150
Drive Bays:
 Front bays:
 - Up to 4 x 3.5” hot plug SAS/SATA (HDD)
 - Up to 8 x 2.5” hot plug SAS/SATA (HDD)
 - Up to 10 x 2.5” hot plug SAS/SATA/NVMe
Optional Internal: 2 x M.2 (BOSS)
Power Supplies:
550W Platinum
Fans:
Standard/High Performance FANs
N+1 Fan redundancy.
Dimensions:
Height: 42.8mm (1.7”)
Width: 434.0mm (17.1”)
Depth: 657.25mm (25.88”)
Weight: 16.75kg (36.93lbs)
Embedded Management:
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Enterprise Power Manager
OpenManage Mobile
Integrations and Connections:
OpenManage Integrations:
 - BMC Truesight
 - Microsoft System Center
 - Red Hat Ansible Modules
 - VMware vCenter and vRealize Operations Manager
OpenManage Connections:
 - IBM Tivoli Netcool/OMNIbus
 - IBM Tivoli Network Manager IP Edition
 - Micro Focus Operations Manager I
 - Nagios Core
 - Nagios XI
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
Networking Options:
2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
GPU Options:
Up to 2 Single-Wide GPU
Ports:
Front Ports:
 - 1 x Dedicated iDRAC direct micro-USB
 - 1 x USB 2.0
 - 1 x VGA
Rear Ports:
 - 2 x 1GbE
 - 1 x Dedicated iDRAC network port
 - 1 x Serial
 - 2 x USB 3.0
 - 1 x VGA
PCIe:
Up to 2:
1 x Gen3 slot (1 x16)
1 x Gen4 slot (1 x16)
Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

More information can be found on the official Dell PowerEdge R6515 Specs PDF.
