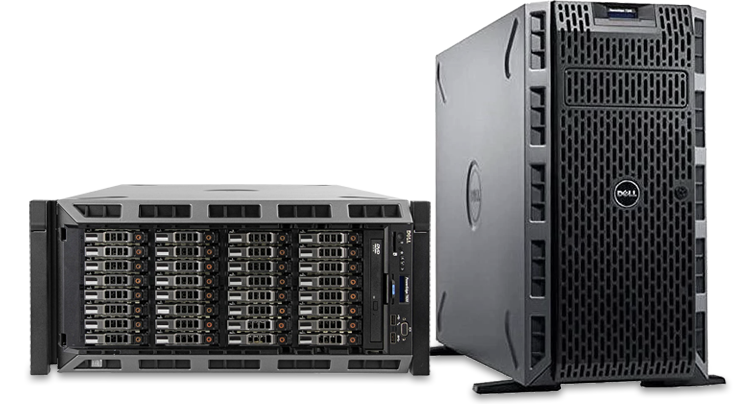

Used and Refurbished Dell PowerEdge T630

13th Gen | Tower Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge T630 servers. The Dell PowerEdge T630 rackable tower server delivers ultimate two-processor performance, versatility and availability for a wide range of demanding workloads in small and medium business environments. Featuring the latest Intel® Xeon® processor E5-2600 v4 product family, huge internal storage capacity, extensive configuration flexibility and the most powerful GPU capability in the PowerEdge server portfolio, the PowerEdge T630 enables users to readily adapt to demanding workloads. From collaboration and productivity applications (mail and messaging, file and print, web serving, video serving) to Online Transaction Processing (OLTP) in retail environments, to record retention and management in healthcare and education, the T630 helps drive drive business success for small- to medium-sized businesses, large enterprise remote and branch offices, and data centers.

  • Up to two Intel Xeon E5-2600 v4 processors
  • Up to 24 DDR4 DIMMs
  • Massive internal storage capacity with up to 32 x 2.5" or 18 x 3.5" hard drives
  • Up to four optional hot-plug Express Flash PCIe SSDs
  • Up to four optional GPUs

PowerEdge T630 Technical Specifications

Form Factor:
 5U Tower or Rack Mount
Dimensions:
 H: 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet
W: 304.5 mm (11.98 in) with feet opened; 217.9 mm (8.57 in) with feet closed
D: 692.8 mm (27.27 in) without bezel; 708.7 mm (27.9 in) with bezel
Maximum weight: 41.8 kg (92.15 lb) for 2.5” hard drive chassis, 51.0 kg (112.43 lb) for 3.5” hard-drive chassis
Processors:
 Up to two Intel® Xeon® processors E5-2600 v4 product family
Memory:
 Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O Slots:
 8 PCIe slots:
• Slot 1: one x16 PCIe 3.0 for FL/FH card from CPU1
• Slot 2: one x8 PCIe 2.0 for FL/FH card from PCH (x4 lanes)
• Slot 3: one x16 PCIe 3.0 for FL/FH card from CPU1
• Slot 4: one x8 PCIe 3.0 for HL/FH card from CPU2
• Slot 5: one x8 PCIe 2.0 for FL/FH card from CPU2 (x4 lanes)
• Slot 6: one x16 PCIe 3.0 for FL/FH card from CPU2
• Slot 7: one x16 PCIe 3.0 for FL/FH card from CPU2
• Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH card from CPU1
RAID Controllers:
 Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Internal HBA (Non-RAID): HBA330
External HBAs (RAID): PERC H830
Drive Bays:
Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5" SAS, SATA, nearline SAS, SSD drives
Up to 16 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5" SAS, SATA, nearline SAS, SSD drives
Embedded NIC:
Intel dual-port 1GbE LOM
GPU:
Support for up to 4 optional 300W internal GPU processing accelerators; (must be ordered at time of initial purchase).
Power Supplies:
Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Availability:
High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; dual internal SD module; hot-plug redundant fan; optional bezel; information tag; ECC memory switch independent partitioning, Single Device Data Correction (SDDC), spare rank, tool-less chassis, support for high-availability clustering and virtualization, proactive systems management alerts
Systems Management:
Systems management:
IPMI 2.0 compliant, Dell OpenManage Essentials, Dell OpenManage Mobile, Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Rack support:
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. Rack mount model available (must be ordered at time of initial purchase).
Supported Operating Systems:
Microsoft Windows Server® 2008/2012 R2
Microsoft Windows Server 2008/2012 R2 SP2, x86/x64
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®

Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Red Hat Enterprise Virtualization®

More information can be found on the official Dell PowerEdge T630 Specs PDF.
