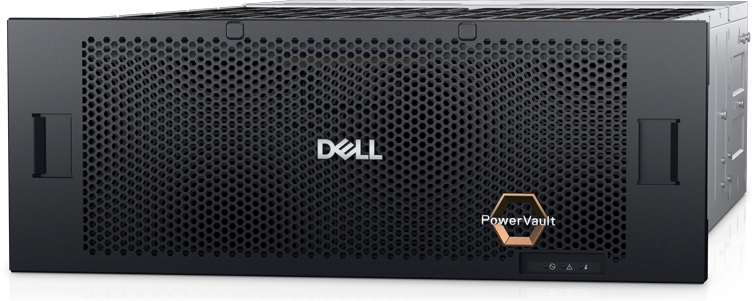

Used and Refurbished Dell PowerVault MD2460

MD Series Direct Attached Storage | 4U Rack
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerVault MD2460 storage. The PowerVault MD2460 is purpose-built and highly optimized for PowerEdge direct-attached storage (DAS) configurations. Directly attaching PowerVault MD to new and previous generation PowerEdge servers, simplifies the challenges of server capacity expansion ensuring applications get high-speed access to their data – without compromise.

This latest generation of the PowerVault MD Series is designed to future proof your investment, with support for emerging technologies such as 24Gb SAS host connectivity and PERC SAS4 controllers. PowerVault MD and PowerEdge server products have united to provide businesses with a future-ready path that will ensure continued value into the distant future.

PowerVault MD2460 Technical Specifications

Rack Size:
 4U
Drive Bays:
 60 x 3.5”
Max Drive Count:

For 14th and 15th Gen PE Servers
Up to 120 for HBA355e
Up to 120 for H840 PERC

For 16th Gen PE Servers
Up to 120 for HBA355e
PERC Support:
 Yes
Max Enclosures:

For 14th and 15th Gen PE Servers
2 (with HBA355e)
2 (with H840 PERC)

For 16th Gen PE Servers
2 (with HBA355e)

Max Capacity:
 2.40PB (20TB HDD)
Storage Media:

7.2K SAS/FIPS 3.5” drives
− 20TB; 16TB; 12TB; 8TB; 4TB
− FIPS: 8TB
Host Interface:
 12Gb/24Gb SAS
I/O & Ports:
 4x 4-lane 24Gbps SAS host connect per EMM
1x USB-C debug ports per EMM
Expansion Protocol:
24Gb SAS4
Supported:
 All-Flash, Hybrid Flash (7.2K HDD only)
Management:
 Enclosure Management Modules (EMM) 2 HA EMM per enclosure provide redundant enclosure management capability with iDRAC or SHMCLI
Dimensions:
 Height: 6.86 in (174.3mm)
Width: 16.65 in (423mm)
Depth:  34.45 in (875mm)
Weight with drives:  199.96 lbs (90.7kg)
Weight without drives: 104.03 lbs (47.18kg)
Power:
 Wattage: 1500W
Voltage: 200-240 VAC
Frequency: 50/60 Hz
Environmental Operating Conditions
 Operating temperature:  32 to 104°F (0 to 40°C)
Operating temperature (ASHRAE A3):  41 to 104°F (5 to 40°C)
Non-operating temperature: -40 to 149°F (-40 to 65°C)
Operating humidity ranges (non-condensing): 8% to 85% non-condensing
Non-operating humidity (noncondensing): 10% to 95% non-condensing
Operating max. temperature gradient: 20C per hour

More information can be found on the official Dell PowerVault MD Series Data Sheet PDF.
