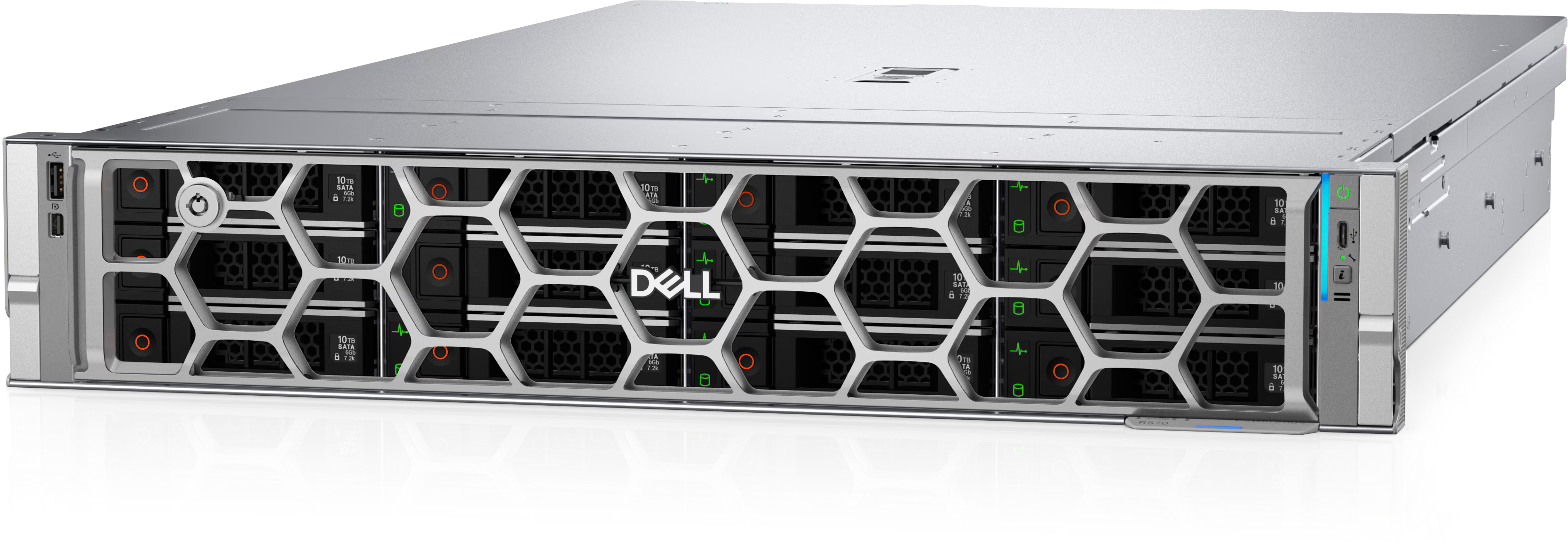

Used and Refurbished Dell PowerEdge R570

17th Gen | 2U Rack Server | 1 Socket
  Contact Us To Get Started

The Dell PowerEdge R570 is a 2U single-socket rack server built to deliver strong performance, balanced expandability, and impressive power efficiency for modern data center environments. Powered by a single Intel Xeon 6 processor, with support for either up to 144 E-cores or up to 86 P-cores with the R1S option, the R570 is designed to provide substantial compute capability in a streamlined single-socket platform. With 16 DDR5 DIMM slots and memory speeds up to 6400 MT/s, plus support for a wide range of storage configurations including SATA, NVMe, and high-density EDSFF E3.S Gen5 NVMe, the R570 gives organizations the flexibility to optimize for performance, storage density, or a balance of both. It also supports GPU and DPU acceleration for workloads that need added computational or networking performance.

Purpose-built for enterprise and scalable infrastructure, the PowerEdge R570 is ideal for virtualization, scale-out databases, medium VM density or VDI, and software-defined storage. Dell positions it as a cost-efficient and energy-conscious platform that integrates easily into existing environments while offering front I/O or rear I/O configuration choices, cyber-resilient security, and OpenManage-based lifecycle management tools to simplify deployment and ongoing administration.

PowerEdge R570 Technical Specifications

Form Factor:
 2U Rack Server
Processors:
 • One Intel Xeon 6 E-core processor with up to 144 cores
• One Intel Xeon 6 P-core processor with up to 86 cores with R1S option
Memory:
 • 16 DDR5 DIMM slots, speeds up to 6400 MT/s
• One Intel Xeon 6 E-core processor supports RDIMM 1 TB max
• One Intel Xeon 6 P-core processor with up to 86 cores with R1S option supports RDIMM 4 TB max
• Supports registered ECC DDR5 DIMMs only
Storage Controllers:
 • Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MHS, PERC H365i Adapter, PERC H965i Adapter
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
• External Controllers: PERC H965e, HBA 465e
Drive Bays:
 Front Bays:
  • Up to 12 x 3.5-inch SATA (HDD) RAID max 384 TB
  • Up to 8 x 2.5-inch NVMe RAID max 491.52 TB
  • Up to 8 x 2.5-inch NVMe max 491.52 TB
  • Up to 8 x 2.5-inch SATA max 30.72 TB
  • Up to 8 x 2.5-inch SATA/Universal max 491.52 TB
  • Up to 16 x 2.5-inch SATA RAID max 61.44 TB
  • Up to 24 x 2.5-inch SATA max 92.16 TB
  • Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB
  • Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 491.52 TB
  • Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 983.04 TB
  • Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 983.04 TB
  • Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 1966.08 TB
Rear Bays:
  • Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB
Power Supplies:
• 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1500 W 277 VAC and HVDC Titanium, hot swap redundant
• 1400 W -48 VDC, hot swap redundant
• 1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Cooling Options:
Air cooling
Fans:
• Up to six hot plug fans
Dimensions:
• Height – 86.8 mm (3.42 inches)
• Width – 482.0 mm (18.98 inches)
• Depth – 802.38 mm (31.59 inches) with bezel
• Depth – 801.49 mm (31.55 inches) without bezel
• Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel
Note: Front I/O configuration will not have a bezel.
Embedded Management:
• iDRAC
• iDRAC Direct
• iDRAC RESTful API with Redfish
• RACADM CLI
• iDRAC Service Module (iSM)
Bezel:
Optional security bezel
OpenManage Software:
• Dell OpenManage systems management portfolio
Mobility:
Integrated iDRAC management and service tools
OpenManage Integrations:
Dell OpenManage portfolio tools and automation for scaling, managing, and protecting infrastructure
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection
Embedded NIC:
1 Gb dedicated BMC Ethernet port
Network Options:
• Up to two OCP NIC card 3.0: two slots on the front or two slots on the rear (optional)
GPU Options:
Up to 3 x 400W DW; Up to 4 x 75W SW
DPU Options:
NVIDIA BlueField-3 2 x 200 GbE B3220
Ports:
Front Ports
  • 1 x USB 2.0 Type-C (HOST/BMC Direct)
  • 1 x USB 2.0 Type-A (optional LCP - Secondary KVM)
  • 1 x Mini DisplayPort (optional LCP - Secondary KVM)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports
  • 1 x Dedicated BMC Ethernet port
  • 2 x USB 3.1 Type-A
  • 1 x VGA
Internal Port
  • 1 x USB 3.1 Type-A
PCIe:
Up to six PCIe slots (x16 connector)
  • Slot 2: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
  • Slot 3: 1 x16 Gen5 Full Height, Half Length
  • Slot 4: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length or 1 x16 OCP3.0
  • Slot 6: 1 x4 Gen4 BOSS (optional)
  • Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
  • Slot 9: 1 x16 Gen5 Full Height, Half Length
  • Slot 10: 1 x16 OCP3.0
  • Slot 31: 1 x16 Gen5 Full Height, Half Length
  • Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 BOSS (optional)
  • Slot 36: 1 x16 Gen5 Full Height, Half Length
  • Slot 38: 1 x16 OCP3.0
• Gen5 PCIe slots: 4
Operating Systems & Hypervisors:
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

More information can be found on the official Dell PowerEdge R570 Specs PDF.
