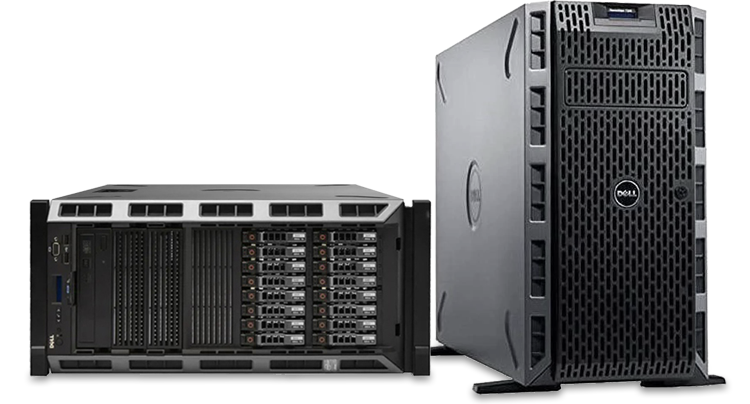

Used and Refurbished Dell PowerEdge T430

13th Gen | Tower Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge T430 servers. The powerful and reliable PowerEdge T430 two-socket tower server delivers performance, expandability and quiet operation for a wide range of office workloads, including workgroup collaboration and productivity applications, mail and messaging, file and print serving, and web serving. The T430 is an ideal choice for small office and remote office/branch office (ROBO) sites in need of single-server performance and capacity.

Accelerate performance across a wide range of workloads with the latest Intel® Xeon® processor E5-2600 v4 product family. Drive fast response times and expand memory capacity over time with 12 DIMM slots and DDR4 memory. Boost I/O performance with 6 x PCIe 3.0 slots delivering 2x data throughput compared to PCIe 2.0.

  • Short 22" depth and quiet office acoustics
  • Intel Xeon processor E5-2600 v4 product family
  • 12 x DIMMs DDR4 memory
  • 4 x PCIe 3.0, 2 x PCIe 2.0 slots

PowerEdge T430 Technical Specifications

Form Factor:
 5U Tower or Rack Mount
Dimensions:
 Tower
H: 430.3 mm (17.04 in); with foot 443.3 mm (17.45 in); with wheel 471.3 mm (18.55 in)
W: 218 mm (8.58 in); with foot 304.5 mm (11.98 in)
D (without bezel): front to rear wall 542.2 mm (21.33 in); front to PSU handle 578.42 mm (22.77 in)
D (with bezel): front to rear wall 558.6 mm (21.99 in); front to PSU handle 594.82 mm (23.41 in)

Rack
H: 218mm (8.58 in)
W: 430.3mm (16.94 in) without ear; 482.40mm (18.99 in) with ear
D (minimum): 538.4 mm (21.2 in) from rack ear back side to chassis rear wall
D (maximum): 584.05mm (22.99 in)
Processors:
 Intel® Xeon® processor E5-2600 v4 product family
Chipset: Intel C610 series chipset
Processor sockets: 2
Internal interconnect: Two QPI links at 9.6 GT/s
Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14
Memory:
 12 DIMM slots: 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s
I/O Slots:
 Support for up to 6 full height slots: 4 x PCIe 3.0, 2 x PCIe 2.0
RAID Controllers:
 Support for a maximum of 1 internal controller and 1 external controller PERC H730, PERC H730P and PERC H830
Network Controller:
 2 x 1GbE LOMs
Hard Drives:
SAS, SATA, nearline SAS, SSD
Communications:
Broadcom® 5720
Power Supplies:
495W, 750W, 1100W PSU; 450W cabled non-redundant PSU
Availability:
Hot-plug drives bays; high-efficiency, hot-plug, redundant power supply units; fan redundancy; extended thermal support; Dell faultresilient memory; Internal dual SD modules
Systems Management:
Systems management:
IPMI 2.0 compliant, Dell OpenManage Essentials, Dell OpenManage Mobile, Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Rack support:
All configurations support rackable, except the 3.5" x 4 cabled chassis configuration
Supported Operating Systems:
Microsoft Windows Server® 2008/2012 R2
Microsoft Windows Server 2008/2012 R2 SP2, x86/x64
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®

Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Red Hat Enterprise Virtualization®

More information can be found on the official Dell PowerEdge T430 Specs PDF.
