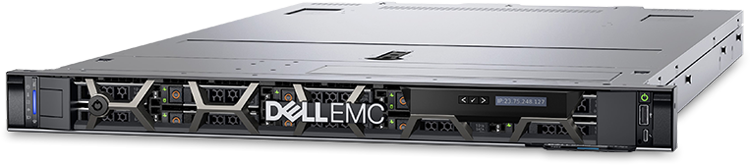

Used and Refurbished Dell PowerEdge R650

15th Gen | 1U Rack Server | 2 Socket
 Start Customizing   Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R650 servers. The Dell PowerEdge R650, is a full-featured enterprise server, designed to optimize workload performance and data center density. Powered by the 3rd Generation Intel Xeon Scalable processors, the PowerEdge R650, is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R650 supports PCIe Gen 4 and up to 10 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R650 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, HighFrequency Trading, Traditional corporate IT, Virtual Desktop Infrastructure, and even HPC or AI/ML environments that require performance, and GPU support in a dense 1U form factor.

The Dell EMC PowerEdge R650 offers compelling performance, high-speed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:

  • Traditional corporate IT
  • Database and Analytics
  • Virtual Desktop Infrastructure
  • AI/ML and HPC

PowerEdge R650 Technical Specifications

Form Factor:
 1U Rack Server
Processors:
 Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory:
 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s
Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
Supports registered ECC DDR4 DIMMs only
Storage Controllers:
 Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N
Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
External PERC (RAID): PERC H840, HBA355E
Drive Bays:
 Front bays:
 - Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
 - Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
 - Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Rear Bays:
 - Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Power Supplies:
800 W Platinum AC/240 HVDC
1100 W Titanium AC/240 HVDC
1400 W Platinum AC/240 HVDC
Cooling Options:
Air cooling, optional processor liquid cooling
Fans:
Standard fan/High performance SLVR fan/High performance GOLD fan
Up to four sets (dual fan module) hot plug fans
Dimensions:
Height – 42.8 mm (1.7 inches)
Width – 482 mm (18.97 inches)
Depth – 809 mm (31.85 inches) without bezel, 822.84 mm (32.39 inches) with bezel
Embedded Management:
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Bezel:
Optional LCD bezel or security bezel
OpenManage Software:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility:
OpenManage Mobile
Integrations and Connections:
OpenManage Integrations:
 - BMC Truesight
 - Microsoft System Center
 - Red Hat Ansible Modules
 - VMware vCenter and vRealize Operations Manager
OpenManage Connections:
 - IBM Tivoli Netcool/OMNIbus
 - IBM Tivoli Network Manager IP Edition
 - Micro Focus Operations Manager
 - Nagios Core
 - Nagios XI
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC:
2 x 1 GbE LOM
Network Options:
1 x OCP 3.0 (x8 PCIe lanes)
GPU Options:
Up to three 75 W single-width GPU
Ports:
Front Ports:
 - 1 x Dedicated iDRAC Direct micro-USB
 - 1 x USB 2.0
 - 1 x VGA
Rear Ports:
 - 1 x USB 2.0
 - 1 x Serial (optional)
 - 1 x USB 3.0
 - 2 x RJ-45
 - 1 x VGA (optional for liquid cooling configuration)
Internal Ports:
 - 1 x USB 3.0
PCIe:
Up to 3 x PCIe Gen4 slots (all x16 except one x8 slot with SNAP I/O modules) or 2 x PCIe (Gen4) full height slots
Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

More information can be found on the official Dell PowerEdge R650 Specs PDF.
