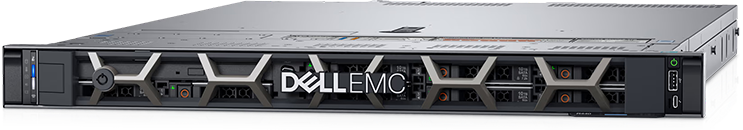

Used and Refurbished Dell PowerEdge R340

14th Gen | 1U Rack Server | 1 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R340 servers. The Dell PowerEdge R340 is a single-socket 1U rack server designed for productivity and data intensive applications for remote office/branch offices. It provides the flexibility to scale, and automates daily tasks. It is the ideal solution that allows you to focus on what matters: Accelerate your business growth. The R340 offers features to support your demanding and growing business needs.

  • Improved performance due to 100% more cores
  • Scale with 17% more storage capacity
  • Protect your server from malicious malware with iDRAC9 Enterprise Server Lockdown mode

PowerEdge R340 Technical Specifications

Form Factor:
 1U Rackmount Server
Dimensions:
 Chassis width: 434.00mm (17.08 in)
Chassis depth: 595.63mm (23.45 in) (3.5” HDD config)
Chassis depth: 544.836mm (21.45 in) (2.5” HDD config)
- Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 13.6 kg (29.98 lb.)
Processor:
 1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory:
 4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage Controllers:
 Internal controllers: PERC H730P, H330, HBA330
Software RAID: PERC S140
External controllers: 12Gbps SAS HBA
Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
Internal Dual SD Module3: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
Drive Bays:
 Up to 8 x 2.5 hot-plug SATA, SAS (optional) or SSD
Up to 4 x 3.5 hot-plug SATA, SAS (optional) or SSD
Power Supplies:
Single or dual 350W (Platinum) or 550W (Platinum) hot-plug redundant power supplies
Embedded Management:
iDRAC9
iDRAC Direct
Bezel:
Optional security bezel
OpenManage Software:
 OpenManage Enterprise
OpenManage Power Manager
OpenManage Mobile
Integrations & Connections:
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible
Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool/OMNIbus
Tools:
iDRAC Service Module
iDRAC RESTful API with Redfish
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
Security:
TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires iDRAC Enterprise or Datacenter)
System Erase
I/O & Ports:
Networking Options:
2 x 1GbE LOM Network Interface Controller (NIC) ports
Front ports:
1x USB 2.0, 1 x IDRAC micro USB 2.0 management port
Rear ports:
2 x USB 3.0, VGA, serial connector
2 x PCIe Gen 3.0 slots:
• One x8 slot low-profile, half-length with x4 slot width
• One x16 slot low-profile/full-height, half-length with x8 bandwith
Supported Operating Systems:
Citrix® XenServer®
Microsoft® Windows Server® with Hyper-V (2016 and 2019)
Red Hat® Enterprise Linux
Ubuntu® Server LTS
SUSE® Linux Enterprise Server
VMware® ESXi

More information can be found on the official Dell PowerEdge R340 Specs PDF.
