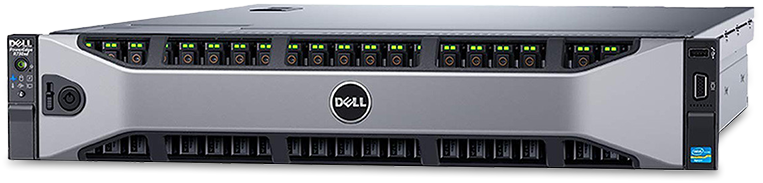

Used and Refurbished Dell PowerEdge R730xd

13th Gen | 2U Rack Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R730xd servers. The R730xd is an exceptionally flexible and scalable, two-socket 2U rack server that delivers high performance processing and a broad range of workload-optimized local storage possibilities, including hybrid tiering. Designed with an incredible range of configurability, the PowerEdge R730xd meets the needs of many different workloads with the Intel Xeon processor E5-2600 v3 product family, 24 DIMMs of high-performance DDR4 memory and a broad range of local storage options.

Helpful features include:

  • Enhance database performance by using flash drives to cache "hot" data, while simultaneously having up to 48TB2 of server-based storage with NL-SAS/SATA HDDs.
  • Improved networking throughput delivers the performance necessary for your SharePoint, Lync, Exchange and consolidated collaboration environments.
  • Improve response times with up to 15 percent greater memory bandwidth than earlier generations and help increase IO performance with the customizable throughput of Dell Select Network Adapters.
  • Support today's diverse workloads in virtual environments, including virtualized local storage. To further enhance these deployments, the R730xd features:
    - DDR4 RAM that supports more, larger and higher-performance virtual machines per node, drawing up to 30 percent less power than previous-generation DDR3 RAM
    - Multi-mode RAID controllers with twice the storage bandwidth of previous generations
    - Compatibility with software defined storage (SDS) solutions, such as Microsoft Storage Spaces, VMware® Virtual SAN™ (vSAN) and OpenStack Ceph

PowerEdge R730xd Technical Specifications

Form Factor:
 2U Rackmount Server
Processors:
 Intel® Xeon® processor E5-2600 v3 product family

Processor Socket: 2
Chipset:
 Intel C610 series chipset
Memory:
 Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
Storage:
 SAS, SATA, nearline SAS, SSD, PCIe SSD:

Up to 68.5TB with 18 x 1.8" 960GB SATA SSD + 8 x 3.5" 1.8TB SAS HDD
Up to 47.5TB with 24 x 2.5" 1.8TB hot-plug SAS HDD + 2 x 2.5" 1.8TB hot-plug SAS HDD
Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD
Drive Bays:
 Internal hard drive bay and hot-plug backplane:
Up to 16 x 3.5" SAS, SATA, nearline SAS, SSD + 2 x 2.5" drives
Up to 18 x 1.8" SAS, SATA, nearline SAS, SSD drives + 8 x 3.5" SAS, SATA, nearline SAS, SSD drives, + 2 x 2.5" HDD
Up to 26 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives
RAID controllers:
 Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Slots:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card
Embedded Network Controller:
4 x 1GbE, 2x10+2GbE, 4 x 10GbE NDC
Communications:
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power:
1100W AC, 86 mm 13G (Platinum+)
1100W DC, 86 mm 12G (Gold)
750W AC, 86 mm 12G (Platinum)
750W AC, 86 mm 12G (Diamond)
495W AC, 86 mm 12G (Platinum)
Availability:
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Rack support:
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
Chassis:
H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Management:
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
Operating systems:
Microsoft Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
VMware ESX®

Optional embedded hypervisors: Citrix® XenServer®
VMware vSphere® ESXi™

More information can be found on the official Dell PowerEdge R730xd Specs PDF.
