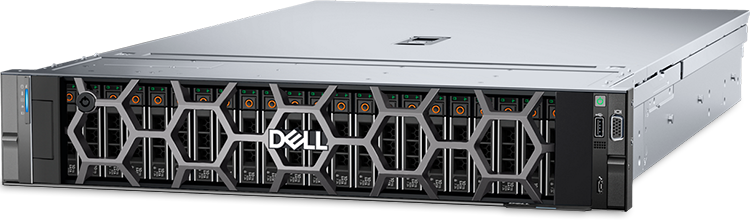

Dell PowerEdge R760 - STI Custom Build | HJKAU
Dell PowerEdge R760 - STI Custom Build | HJKAU

Prebuilt Dell PowerEdge R760 | 2x4509Y | 256GB RAM | 12x8TB SAS HDD

Chassis: 1x Dell PowerEdge R760 12x3.5" | PERC 11 | Supports All CPU | STI Warranty Only
Processors: 2x Intel Silver 4509Y 2.6G, 8C/16T, 16GT/s, 23M Cache, Turbo, HT (125W) SRN61
  1x Dell R760 Standard Cooling Bundle | 2 CPU
Memory: 8x 32GB DDR5 4800MHz Registered Dual Rank Memory
Data Drives: 12x Dell SAS 3.5" 8TB NL 7.2K 12GBPS 512e
  12x Dell Hot Swap 2.5" Sled for 14th, 15th & 16th Generation Servers
Raid Controller: 1x Dell H755 RAID Rear Controller Full Height
Network Adapters OCP 3.0: 1x Dell Broadcom 5720 Quad Port 1GB RJ45 OCP 3.0
Onboard LOM: 1x Dell Broadcom 5720 Dual Port 1GB RJ45 Onboard LOM Card 16th Gen
Risers: 1x Dell R760 Riser Bundle (8 PCIe) (4) x16 Full Height (2) x8 Full Height (2) x16 Half Height
PCIe NIC's & Adapters: 2x Dell Mellanox CX4121C ConnectX-4 Dual Port 25GB SFP28 Low Profile
Boot Optimized Storage Card (BOSS): 1x Dell R760 Hot Swap Boss N1 Controller Bundle
  2x Dell SSD M.2 NVMe 960GB 80MM
Remote Access: 1x Dell iDRAC9 16th Generation Enterprise License
TPM Module: 1x Dell 15th / 16th Gen Trusted Platform Module 2.0 (TPM)
Power Supply: 2x Dell 1400W Power Supply for 15G
  2x 14AWG 6ft Power Cord Cable 125V 15A NEMA 5-15P to C13
Rails & Cable Management: 1x Dell 2U 4 Post Sliding Ready Rails | B21
Bezel: 1x Dell 14th Thru 16th Generation 2U Front Bezel
Warranty: 1x 1 Year
Total Cores
16
Drive Capacity
96 GB
RAM Capacity
256 GB
Form Factor
2U
Model
R760
Dell Server Generation
16
Drive Bays (Qty)
12
Out Of Stock
Regular price
$29,793
Sale price
$29,793
Regular price
