Intel

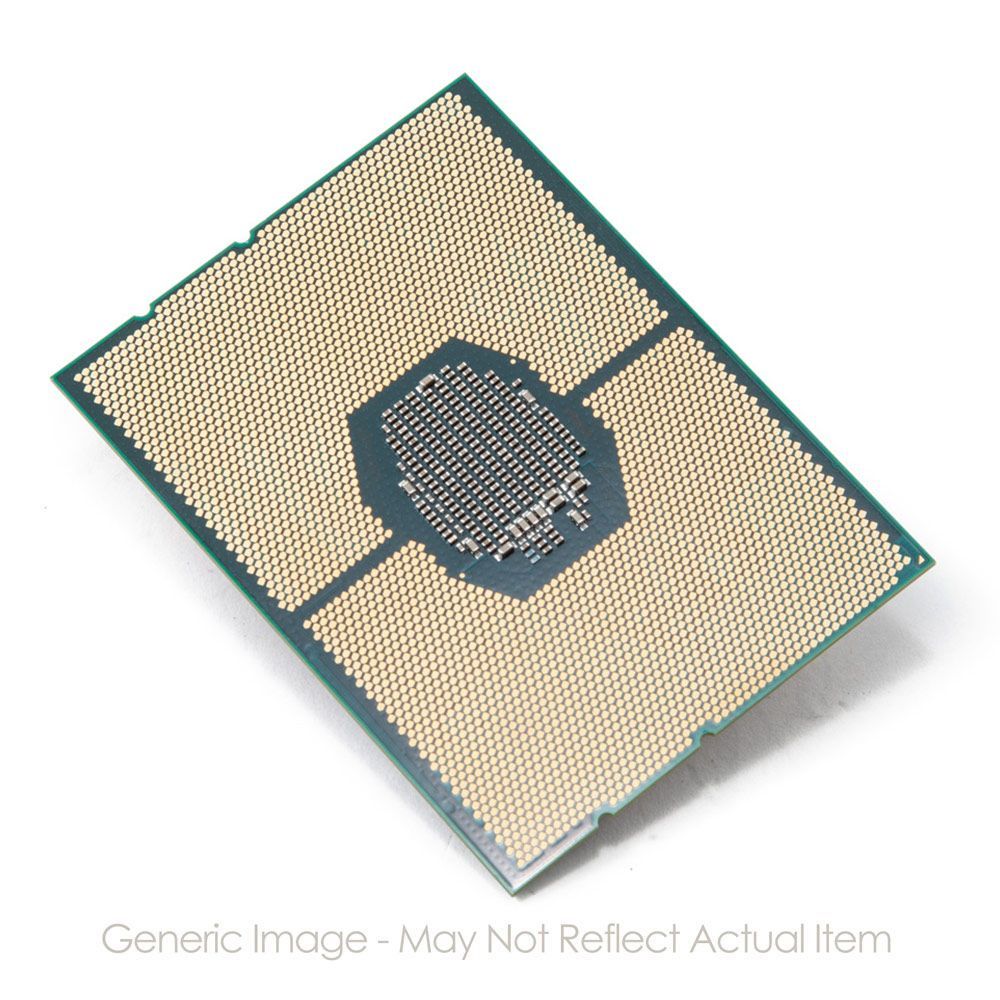

Intel Gold 6230 20 Core (2.1Ghz, 27.5M 125W) SRF8W

This Intel Xeon Gold 6230 is a 20-core, 40-thread 2nd Gen Intel Xeon Scalable server processor for FCLGA3647 platforms with Cascade Lake CPU support. It operates at a 2.1GHz base frequency with up to 3.9GHz turbo, 27.5MB cache, and a 125W TDP, supporting six-channel DDR4-2933 ECC memory, PCIe 3.0 connectivity, Intel Optane persistent memory on systems designed for it, and up to three UPI links for multi-processor configurations. Compatibility depends on the server’s supported CPU generation, BIOS level, FCLGA3647 socket layout, 125W heatsink and airflow requirements, memory population, and single- or multi-CPU pairing requirements.

Manufacturer Part #
SRF8W
Product Collection
2nd Gen Intel Xeon Scalable Processors
Code Name
Cascade Lake
Vertical Segment
Server
Processor Number
6230
Lithography
14 nm
Total Cores
20
Total Threads
40
Base Frequency
2.1 GHz
Max Turbo Frequency
3.9 GHz
Cache
27.5 MB
Max UPI Links
3
TDP
125 W
Max Memory Size
1000 GB
Memory Types
DDR4-2933
Max Memory Speed
2933 MHz
Max Memory Channels
6
ECC Memory Supported
true
PCI Express Revision
3
Max PCI Express Lanes
48
Sockets Supported
FCLGA3647
Spec Code
SRF8W
Dell Server Generation
14
Condition
Refurbished
Out Of Stock
$49
$49
$0
