Intel

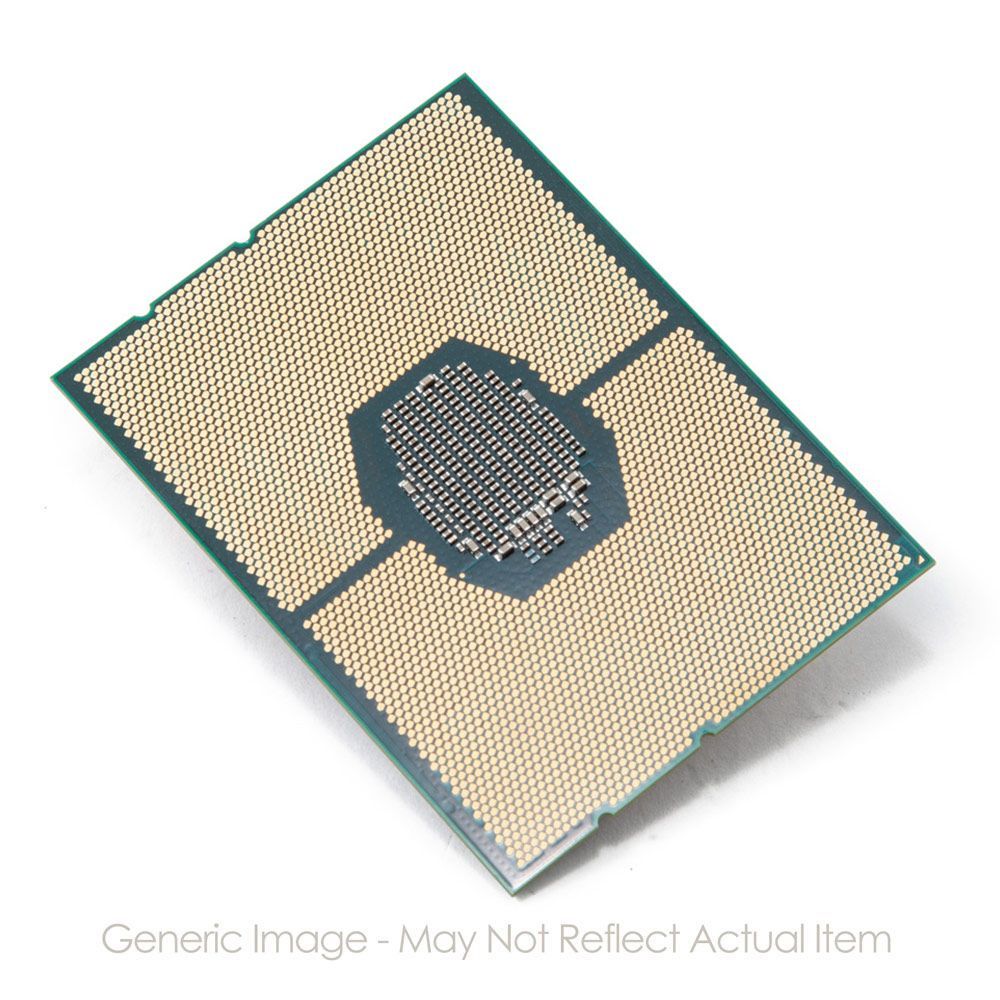

Intel Gold 6140 18 Core (2.30Ghz, 24.75M L3 140W) SR3AX

This Intel Xeon Gold 6140 processor is an 18-core, 36-thread Skylake-generation server CPU in the Intel Xeon Scalable family. It runs at a 2.30GHz base frequency with up to 3.70GHz turbo frequency, includes 24.75MB of L3 cache, and has a 140W TDP. The processor uses the FCLGA3647 socket and supports six-channel DDR4-2666 ECC memory, up to 48 PCIe 3.0 lanes, and server designs with up to four processors; compatibility depends on Xeon Scalable processor support, BIOS or firmware support, socket type, heatsink and fan capacity for a 140W CPU, and the system board’s memory population limits.

Manufacturer Part #
SR3AX
Product Collection
Intel Xeon Scalable Processors
Code Name
Skylake
Vertical Segment
Server
Processor Number
6140
Lithography
14 nm
Total Cores
18
Total Threads
36
Base Frequency
2.3 GHz
Max Turbo Frequency
3.7 GHz
Cache
24.75 MB
Max UPI Links
3
TDP
140 W
Max Memory Size
768 GB
Memory Types
DDR4-2666
Max Memory Speed
2666 MHz
Max Memory Channels
6
ECC Memory Supported
true
PCI Express Revision
3
Max PCI Express Lanes
48
Sockets Supported
FCLGA3647
Max CPU Configuration
4
Spec Code
SR3AX
Dell Server Generation
14
Condition
Refurbished
Out Of Stock
$19
$19
