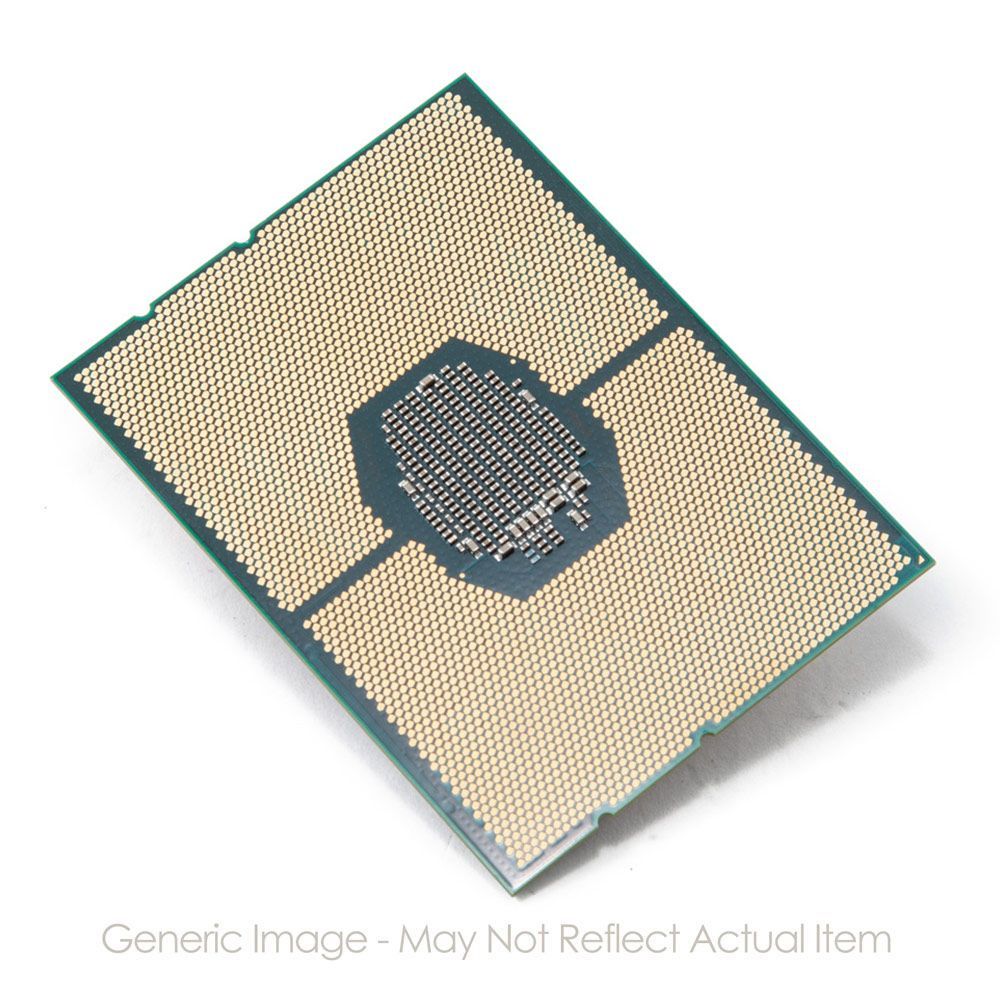

Intel Gold 5220 18 Core (2.2Ghz, 24.75M 125W) SRFBJ

This Intel Xeon Gold 5220 is an 18-core, 36-thread Cascade Lake server processor for FCLGA3647 platforms that support 2nd Gen Intel Xeon Scalable CPUs. It provides a 2.2GHz base frequency, up to 3.9GHz turbo frequency, 24.75MB cache, and a 125W TDP, with support for six-channel DDR4-2667 ECC memory, Intel Optane memory, and up to 48 PCIe 3.0 lanes for I/O expansion. Compatibility depends on the server board’s processor generation and socket support, BIOS level, single- or dual-socket CPU population rules, supported heatsink and fan configuration, DDR4 memory speed and population requirements, and chassis thermal capacity for a 125W CPU.

Manufacturer Part #
SRFBJ
Product Collection
2nd Gen Intel Xeon Scalable Processors
Code Name
Cascade Lake
Vertical Segment
Server
Processor Number
5220
Lithography
14 nm
Total Cores
18
Total Threads
36
Base Frequency
2.2 GHz
Max Turbo Frequency
3.9 GHz
Cache
24.75 MB
Max UPI Links
2
TDP
125 W
Max Memory Size
1000 GB
Memory Types
DDR4-2667
Max Memory Speed
2667 MHz
Max Memory Channels
6
ECC Memory Supported
true
PCI Express Revision
3
Max PCI Express Lanes
48
Sockets Supported
FCLGA3647
Spec Code
SRFBJ
Dell Server Generation
14
Condition
Refurbished
2 In Stock
$49
$49
$0
