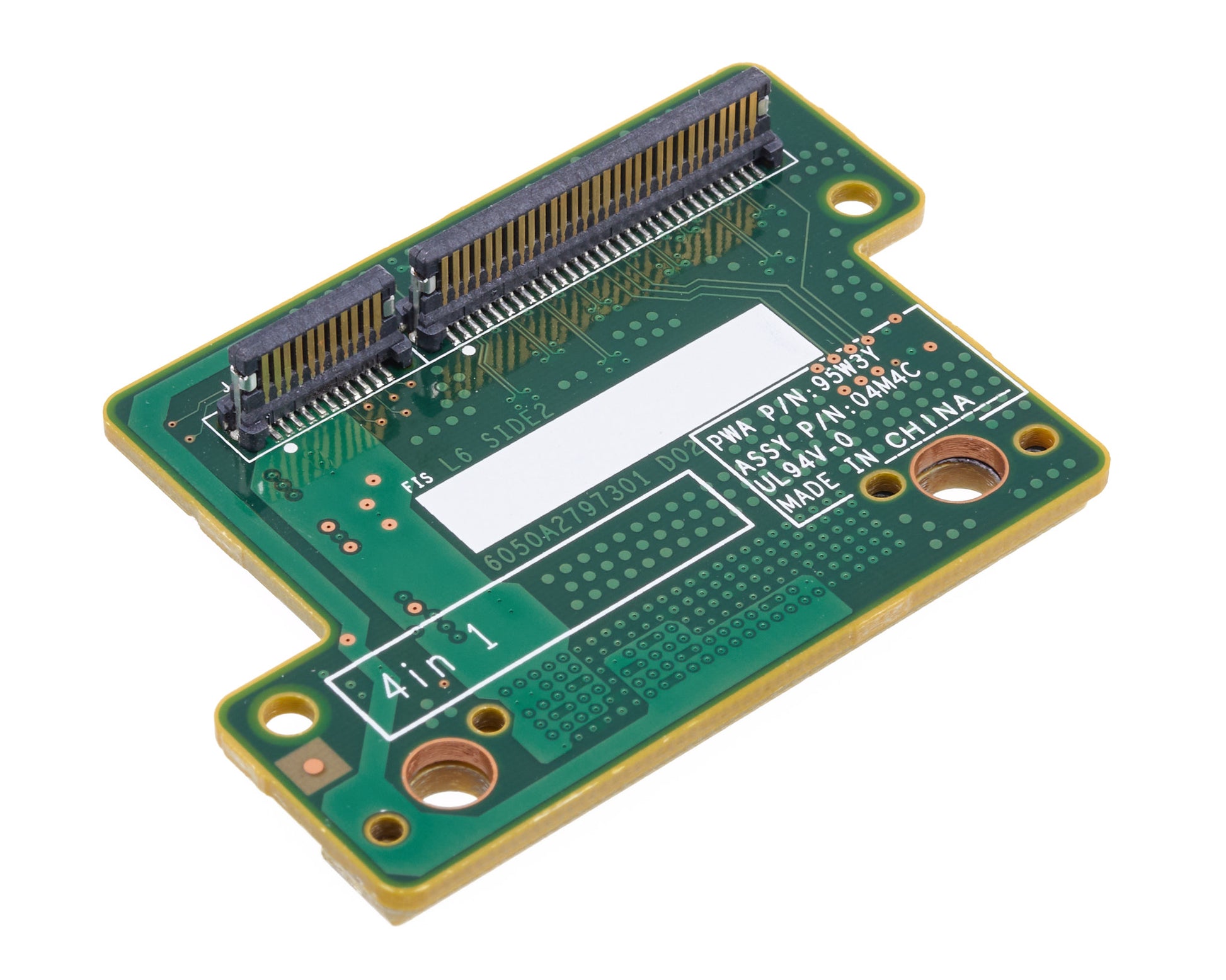

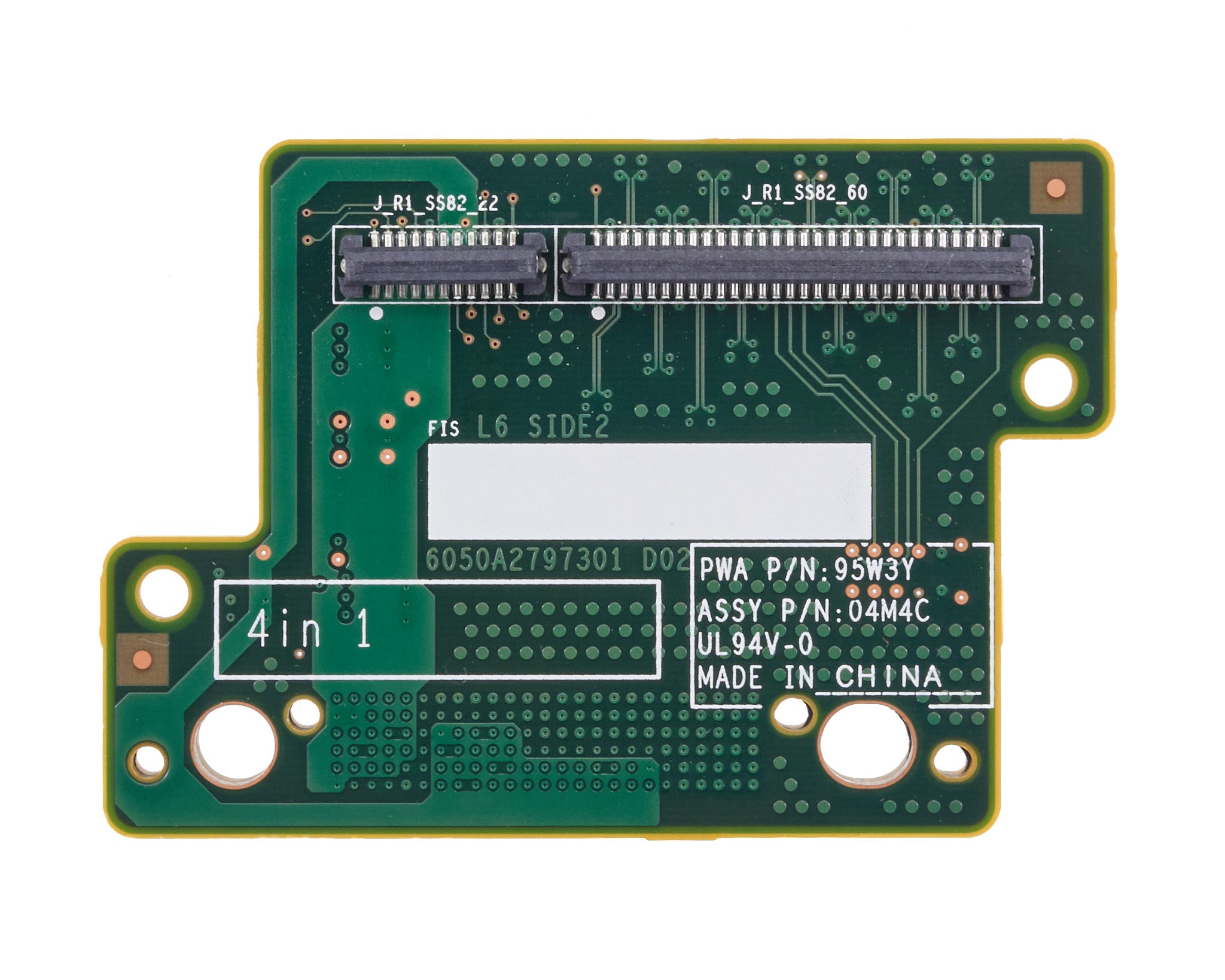

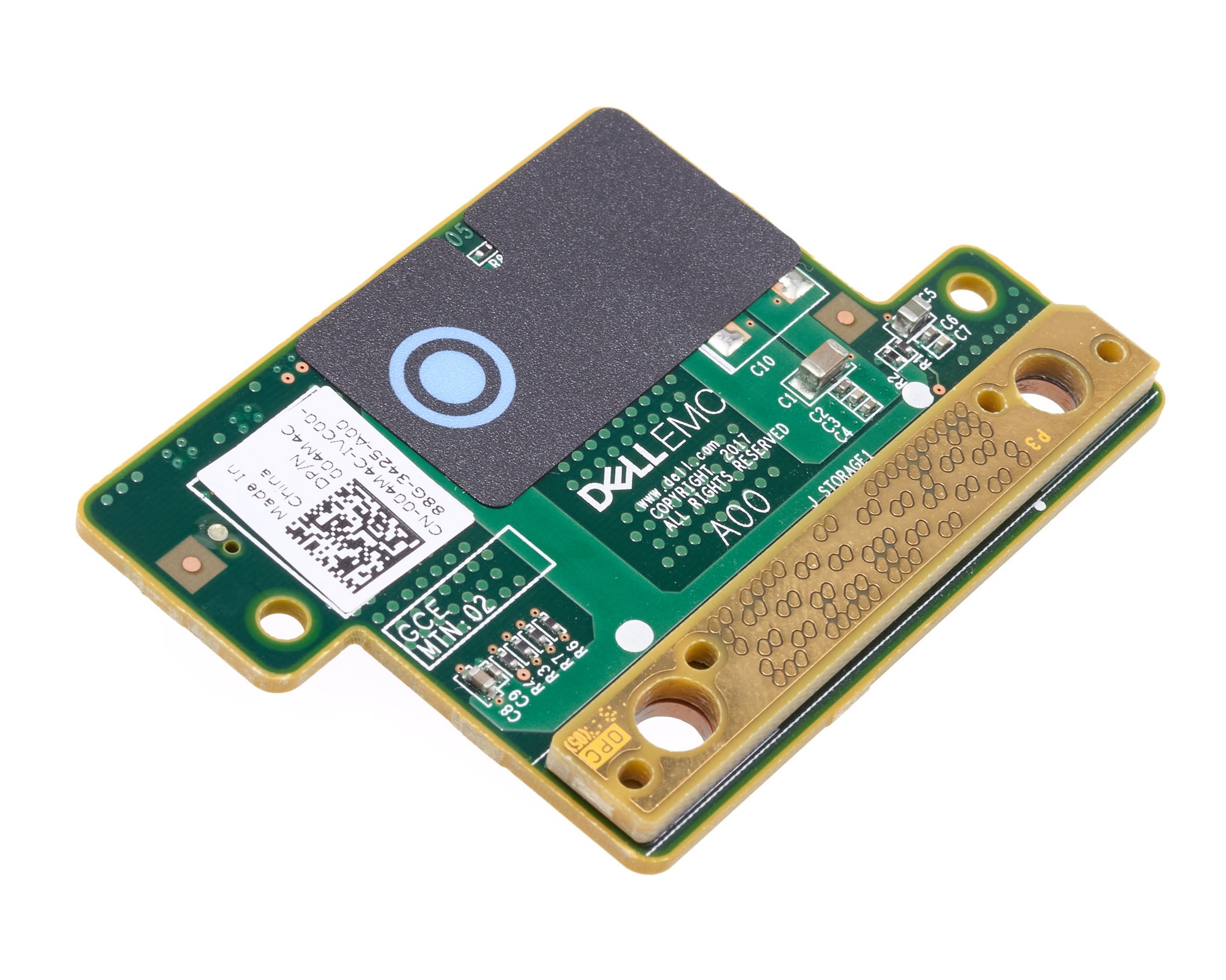

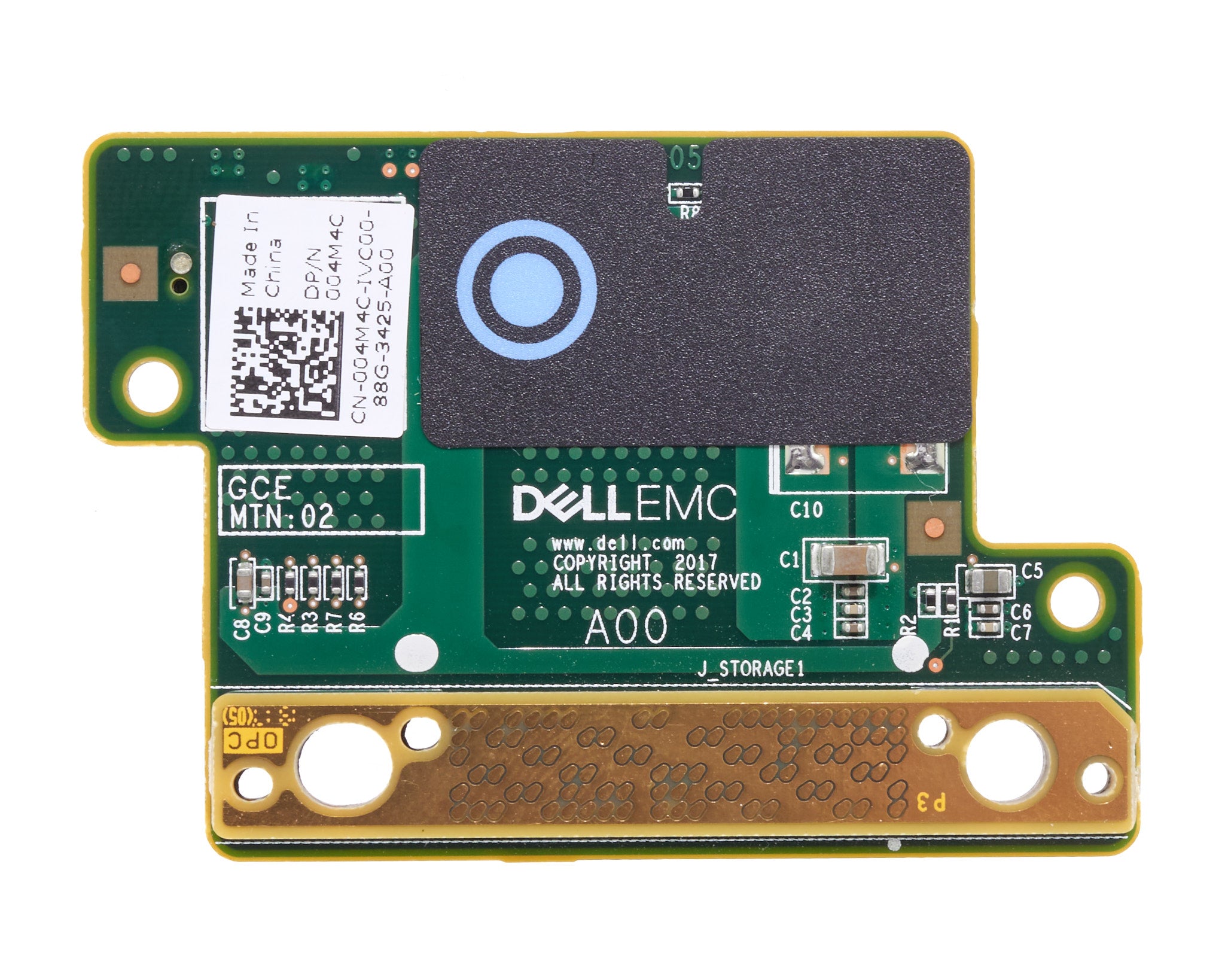

Dell Mini Interposer Board

This Dell mini interposer board is a PERC controller interface board used in Dell PowerEdge R740 and R740XD servers configured with PERC H740 or H740P mini RAID controllers. It sits between the system board and the mini PERC controller, providing the required board-to-controller interface for the storage controller to communicate with the server’s supported backplane and drive cabling. Compatibility depends on the R740 or R740XD chassis, the installed H740 or H740P mini controller type, and the storage backplane/controller layout; it is not intended for PowerEdge R740xd2 systems.
