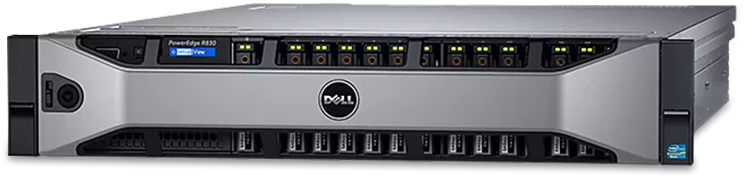

Used and Refurbished Dell PowerEdge R830

13th Gen | 2U Rack Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R830 servers. A high-performance four-socket, 2U rack server, the Dell PowerEdge R830 is designed for scalable database applications and dense virtualization deployments. Manage data overload and expanding virtual environments in midsized and large enterprises with the extreme processing power and massive memory density of the PowerEdge R830 rack server. A compute-intensive performance platform with highly scalable memory (up to 3TB) and impressive I/O capabilities, the R830 offers the Intel Xeon processor E5-4600 v4 product family, with up to 22 cores per processor, to readily handle demanding workloads, like enterprise resource planning (ERP), data warehousing, e-commerce, Virtual Desktop Infrastructure (VDI), databases and data node highperformance computing (HPC).

  • Up to 22 cores per CPU
  • Up to 48 DDR4 DIMMS
  • Up to 16 x 2.5" HDDs

PowerEdge R830 Technical Specifications

Form Factor:
 2U Rackmount Server
Dimensions:
 H: 86.8 mm (3.417 in), W: 482.4 mm (18.99 in), D: 811.06 mm (31.93 in) with PSU and bezel D: 776.46 mm (30.59 in) PSU without bezel
Processors:
 Intel® Xeon® processor E5-4600 v4 product family

Processor Socket: 2
Chipset:
 Intel C612 series chipset
Memory:
 (48 DIMM slots): 8GB/16GB/32GB/64GB DDR4, RDIMM, LRDIMM up 2400MT/s
Storage:
 16 x 2.5" SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
Drive Bays:
 Up to 16 x 2.5"
RAID controllers:
 Internal controllers: PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Slots:
7 PCIe slots:
- 2 x16 half-length, full-height
- 1 x8 half-length, full-height
- 3 x8 half-length, half-height
- 1 x8 half-length, full-height for the RAID controller
Communications:
Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Broadcom 57800S dual-port 10GbE Base-T with 2 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57800S dual-port 10GbE SFP+ with 2 1GbE (TOE and iSCSI offload available on 10GbE ports) Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 1GbE (FCoE capability enabled on the 10GbE ports)
Power:
Platinum 750W AC, auto-ranging; Platinum 1600W AC, auto-ranging; hot-plug redundant 1100W AC
Systems Management:

Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center

Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync

Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Rack support:
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
Operating systems:
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
VMware vSphere® ESXi®

Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Microsoft Windows Server 2012, includes Hyper-V

More information can be found on the official Dell PowerEdge R830 Specs PDF.
