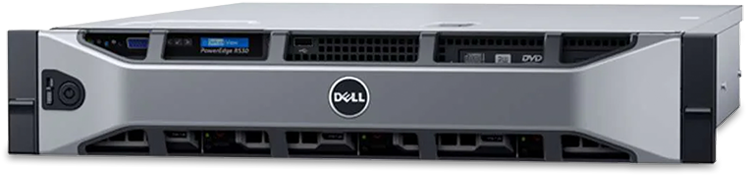

Used and Refurbished Dell PowerEdge R530

13th Gen | 2U Rack Server | 2 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge R530 servers. The PowerEdge R530 is a versatile and affordable two-socket, 2U mainstream rack server that delivers balanced performance and mid-range scalability for a wide range of common business workloads. Designed for data centers needing an affordable, virtualization-ready, two-socket rack server, the PowerEdge R530 is an excellent platform for a wide range of common business applications and small-scale virtualization. The R530 is also highly attractive as a dedicated development or backup server.

  • Intel Xeon processor E5-2600 v4 product family
  • Up to 12 x DDR4 DIMMs
  • Up to 8 x 3.5" hard drives
  • Up to 5 x PCIe slots (including 3 x PCIe 3.0)

PowerEdge R530 Technical Specifications

Form Factor:
 2U Rackmount Server
Dimensions:
 H: 86.8 mm (3.417 in), W: 434 mm (17.1 in), D: 646 mm (25.4 in) with bezel D: 648 mm (25.5 in) without bezel
Processors:
 Intel® Xeon® processor E5-2600 v4 product family

Processor Socket: 2
Chipset:
 Intel C610 series chipset
Memory:
 DDR4 DIMMs at up to 2400MT/s; 12 DIMM slots: 4GB/8GB/16GB/32GB
Storage:
 Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD drives
RAID controllers:
 Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
I/O Slots:
Support for up to 5 x PCIe
- 3 x PCIe 3.0
- 2 x PCIe 2.0
Communications:
4 x 1GbE LOM
Power:
495W, 750W, 1100W hot-plug PSU; -48V DC 1100W hot-plug PSU; 450W cabled PSU
Systems Management:

Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center

Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Rack support:
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
Operating systems:
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
VMware vSphere® ESXi®

Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Microsoft Windows Server 2012, includes Hyper-V

More information can be found on the official Dell PowerEdge R830 Specs PDF.
