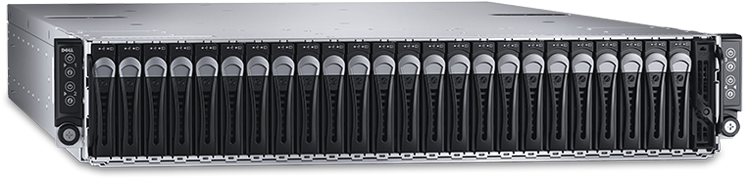

Used and Refurbished Dell PowerEdge C6320

13th Gen | 2U Rack Server | 8 Socket
  Contact Us To Get Started

Maximize your IT budget with refurbished or used Dell PowerEdge C6320 servers. Dell's PowerEdge C6320 offers greater performance and improved energy efficiency with optimized compute, processors and memory for the most demanding high-performance computing and scale-out workloads. Features the Intel Xeon processor E5-2600 v4 product family and iDRAC8 with Lifecycle Controller.

  • Optimized for high-performance computing (HPC)
  • Ideal balance of compute, memory, local storage and management automation
  • Flexibly mix workloads in one chassis
  • Ideal use cases include scientific research, financial services, oil and gas exploration, VDI, and SDS

PowerEdge C6320 Technical Specifications

Form Factor:
 2U Rackmount Server
Dimensions:
 H: 8.68 cm (3.42 in), W: 44.8 cm (17.6 in), D: 79.0 cm (31.1 in). Weight (maximum configuration): 41 kg (90.4 lbs) Weight (empty): 15.1 kg (33.3 lbs)
Processors:
 Intel® Xeon® processor E5-2600 v4 product family
Up to 4 x 2-socket servers: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 cores per processor
Intel C612 chipset
Primary Storage:
 Maximum internal storage: 72TB SATA or nearline 48TB SAS
Drive bays/HDD:
 24 x 2.5" or 12 x 3.5" hard drive options
24 x 2.5" hard drive option with variable drive allocation
Supports 7.2K, 10K, 15K RPM 2.5"/3.5" SAS
Supports 7.2K RPM 2.5"/3.5" SATA
2.5" SATA (7.2K): 250/500GB, 1TB/2TB
2.5" SAS (7.2K): 1TB/2TB
2.5" SAS (10K): 600GB/1.2TB
2.5" SAS (SAS12): 200/400/800GB
2.5" SATA SSD: 120/160/200/400/800/960/1200/1600/19 20/3840GB
2.5" SAS SSD: 200/400/480/800/960/1600/3840GB
3.5" SATA (7.2K): 1TB/4TB/6TB
Embedded network connectivity:
 Intel 82599ES 10GbE dual-port SFP+
USB Ports:
 2 external USB 2.0 ports
I/O Slots:
1 x16 PCIe 3.0 half-height, half-length
1 x8 PCIe 3.0 mezzanine
I/O adapter options:
1GbE:
- Intel Powerville I350 dual-port 1GbE (PCIe adapter)
- Intel Powerville I350 dual-port 1GbE PCIe (mezzanine)
10GbE/25GbE/40GbE:
- Intel X540 Dual Port 10GbE 10Base-T (mezzanine and PCIe adapter)
- Mellanox ConnectX®-3 Pro dual-port 10GbE SFP+ (mezzanine)
- Chelsio Dual Port T520-CR 10Gb SFP+ (PCIe adapter)
- Mellanox ConnectX-4 Dual port 25Gb DA (PCIe adapter)
- QLogic FastLinQ QL45212-DE Dual Port 25Gb SFP28 (PCIe adapter)
- Broadcom 57404 25Gb SFP28 Dual Port PCIe adapter
- Mellanox ConnectX-3 Pro dual port 40Gb (PCIe adapter)
- Mellanox ConnectX-4 Dual Port 100GbE (PCIe adapter)
InfiniBand:
- Mellanox ConnectX-3 VPI single and dual port FDR/40GbE QSFP+(PCIe adapter)
- Mellanox ConnectX-3 dual port, VPI FDR (mezzanine)
- Mellanox ConnectX-4 single and dual port EDR (PCIe adapter)
Omni-Path:
- Intel Omni-path HBA 100 Series Single Port (PCIe adapter)
Drive and RAID controllers:
 Intel C612 chipset SATA: AHCI SATA drives RAID: 0, 1,5,10
PERC H330: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50 (optional)
PERC H730: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50, 60 (optional)
LSI® SAS 2008 Controller 6Gbs: mezzanine (optional)
RAID: 0, 1, 10, JBOD (optional)
SATA DOM boot device (64GB)
SAS SSD boot device (120GB)
Power Supplies:
Dual hot-plug redundant high-efficiency 1400W or 1600W power supplies (200–220 VAC, 240VDC)
Fans:
Shared cooling with quick-disconnect 4x60mm speed fans
Operating Systems:
Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®
Hypervisors:
Microsoft Windows Server 2012 (with Hyper-V® enabled) VMware® vSphere® ESXi®
Systems Management:
Remote management:
- iDRAC8 with Lifecycle Controller
- iDRAC8 Express (default)
- iDRAC8 Enterprise (upgrade option)
Systems management:
- IPMI 2.0 compliant
- Dell OpenManage Essentials
- Dell OpenManage

More information can be found on the official Dell PowerEdge C6320 Specs PDF.
